Kia Rio: Circuit Diagram - Engine Control Module (ECM) - Engine Control System - Engine Control / Fuel System - Kia Rio UB 2012-2019 Service ManualKia Rio: Circuit Diagram

(M/T)

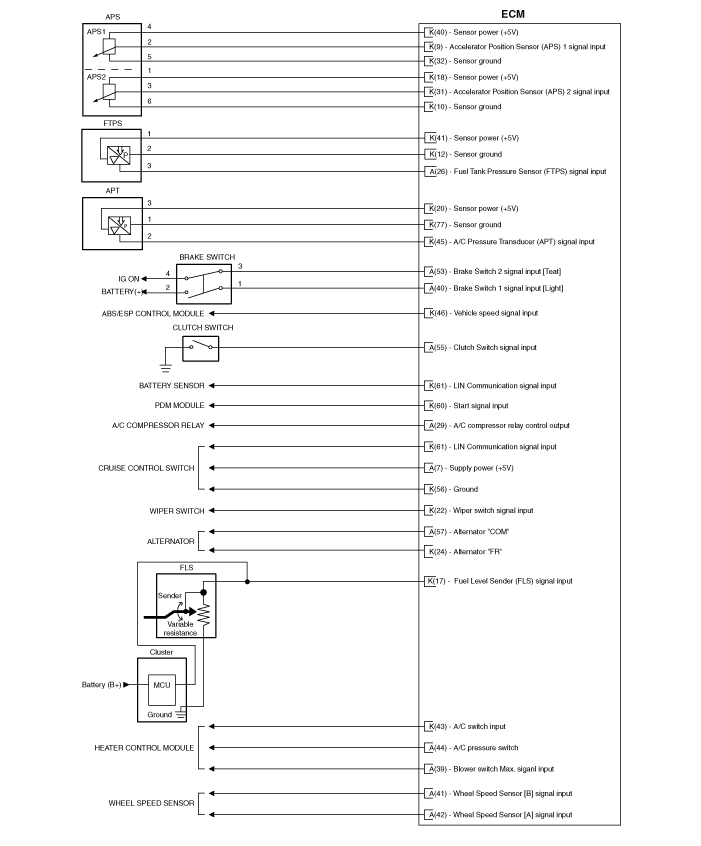

(A/T)

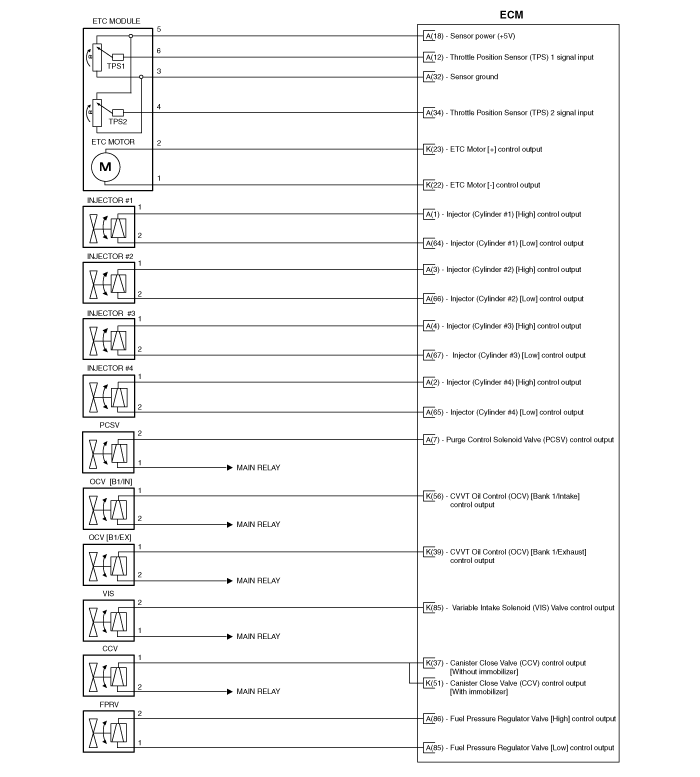

Removal


ECM Terminal And Input/Output signal [A/T]
ECM Terminal Function (A/T) Connector [EGGA-AG] Pin No. Description Connected to 1 Injector (Cylinder #1) [High] control output ...

Removal
   When replacing the ECM, the vehicle equipped with immobilizer must be performed the procedure as below. ...
