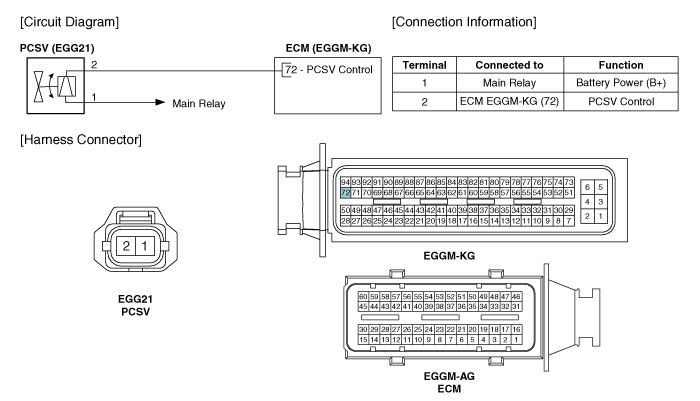

Kia Rio: Circuit Diagram - Purge Control Solenoid Valve (PCSV) - Engine Control System - Engine Control / Fuel System - Kia Rio UB 2012-2020 Service ManualKia Rio: Circuit Diagram

(M/T)


(A/T)

Inspection


Specification
Item Specification Coil Resistance (Ω) 22.0 ~ 26.0 [20°C(68°F)] ...

Inspection
1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between the PCSV termi ...
