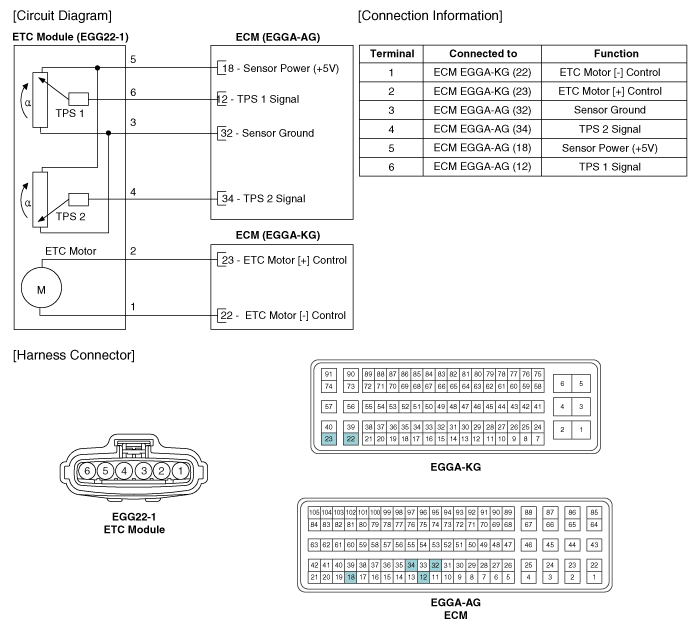

Kia Rio: Circuit Diagram

 - Specification - Engine Control System - Engine Control / Fuel System - Kia Rio UB 2012-2020 Service ManualKia Rio: Circuit Diagram

(M/T)


(A/T)

Inspection


Specification
[Throttle Position Sensor (TPS)] Throttle angle(°) Output Voltage (V) TPS1 TPS2 0 0.5 4.5 10 0.96 4.05 ...

Inspection
Throttle Position Sensor (TPS) 1. Connect the GDS on the Data Link Connector (DLC). 2. Start the engine and measure the output voltage of TP ...
