Kia Rio: Component Location - Windshield Wiper/Washer - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Component Location

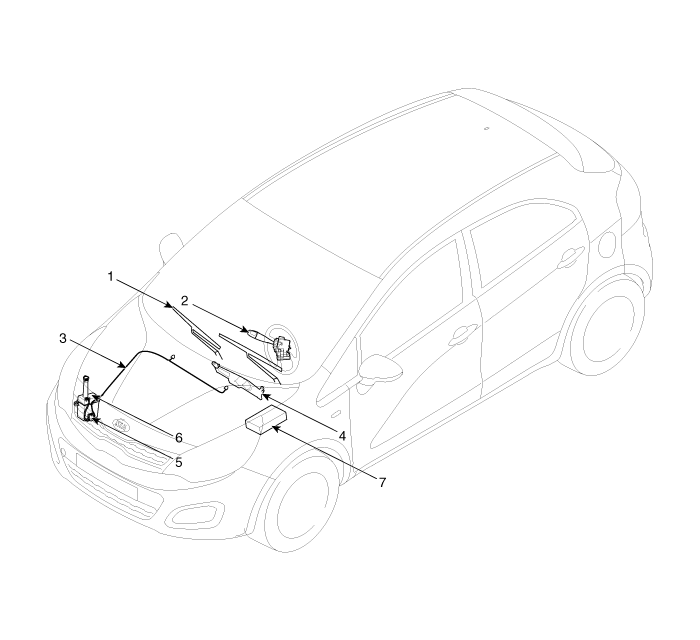

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose
4. Windshield wiper motor & linkage
5. Washer motor
6. Washer reservoir
7. Wiper relay (Engine room relay box)
