Kia Rio: Components - Master Cylinder - Brake System - Kia Rio UB 2012-2019 Service ManualKia Rio: Components

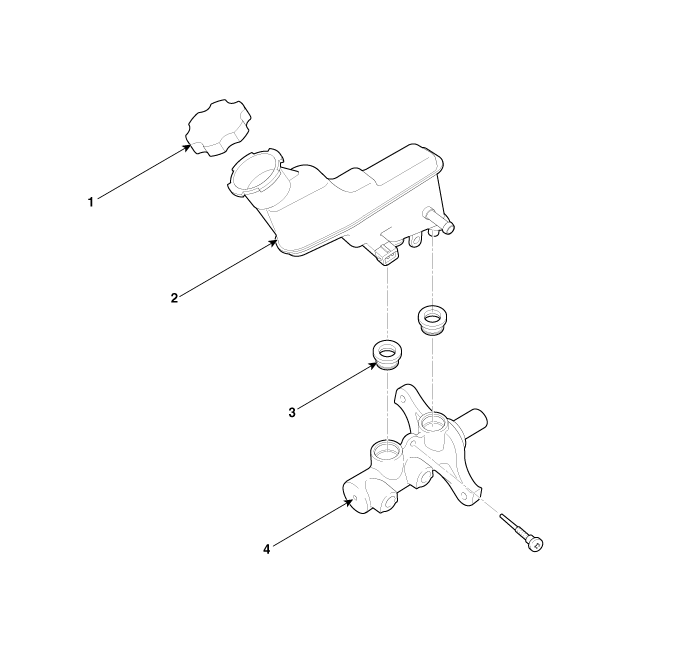

1. Reservoir cap
2. Reservoir
3. Grommet
4. Master cylinder assembly

Master Cylinder
...

Removal
1. Turn ignition switch OFF, and disconnect the negative (-) battery cable. 2. Remove the battery and ECM. (Refer to the Engine Ele ...
