Kia Rio: Console Components - Interior - Body (Interior and Exterior) - Kia Rio UB 2012-2019 Service ManualKia Rio: Console Components

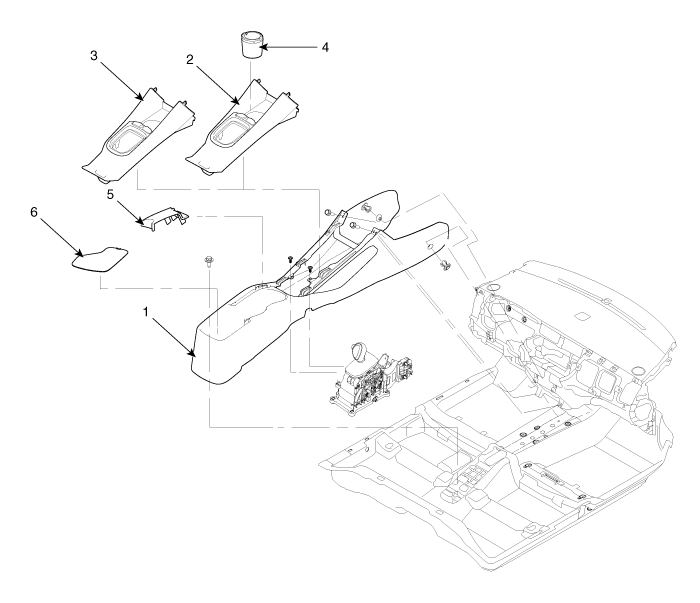

1 . Floor console assembly
2 . Console upper cover [M/T]
3 . Console upper cover [A/T]
4. Potable ash tray
5 . Parking brake cover
6 . Floor console pad
