Kia Rio: Front Hub / Knuckle Components - Front Axle Assembly - Driveshaft and axle - Kia Rio UB 2012-2019 Service ManualKia Rio: Front Hub / Knuckle Components

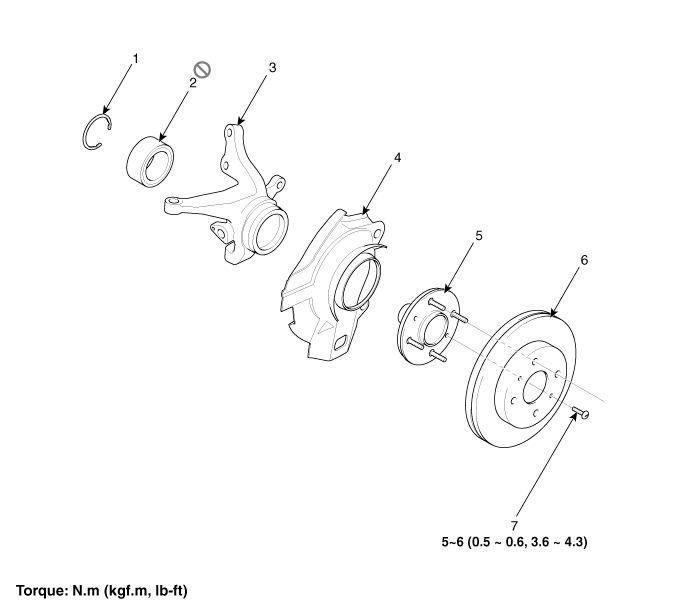

1. Snap ring
2. Bearing
3. Axle assembly
4. Brake disc dust cover

5. Wheel hub assembly
6. Wheel brake disc
7. Brake disc fixing screw

Front Axle Assembly
...

Front Hub / Knuckle Replacement
1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) fro ...
