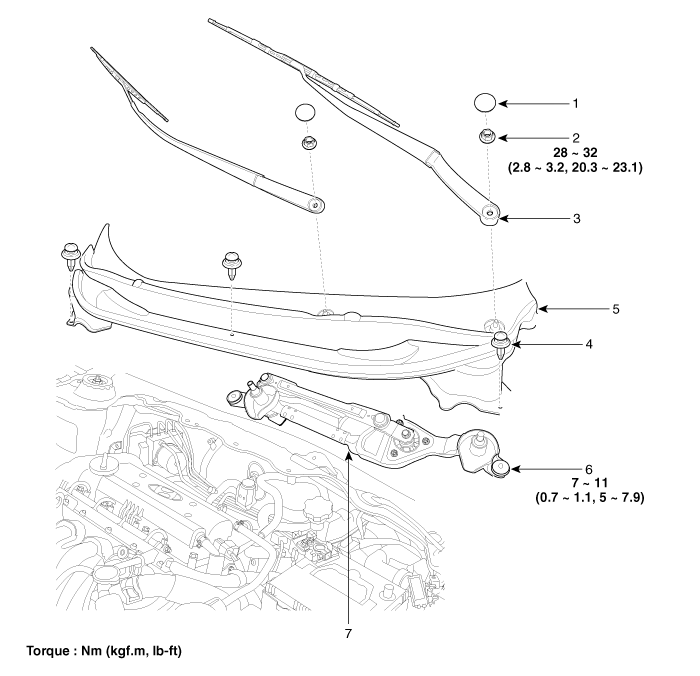

Kia Rio: Front Wiper Motor Component Location - Windshield Wiper/Washer - Body Electrical System - Kia Rio UB 2012-2019 Service ManualKia Rio: Front Wiper Motor Component Location


1. Cap
2. Nut
3. Wiper arm & blade
4. Rivet
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly

Windshield Wiper-Washer Switch Installation
1. Install the wiper switch. 2. Install the steering column upper and lower shrouds. ...

Front Wiper Motor Removal
1. Loosen the windshield wiper arm nut (A) after removing a wiper cap (B). 2. Remove the windshield wiper arm and blade. ...
