Kia Rio: Heated Steering wheel Description - Steering wheel - Steering System - Kia Rio UB 2012-2019 Service ManualKia Rio: Heated Steering wheel Description

Heated pads to grip the steering grip makes the fever.
Heated control unit

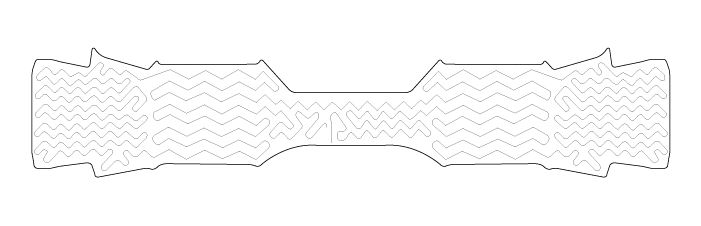

Heated pad



Specifications
Item
Specification
Voltage
13.5 V
Heated pad resistance
1.6 ~ 2.0 Ω  ± 10%
NTC resistance
10.0 kΩ  ± 10% (25°C)
Current
124A not over

Disaseembly
1. Loosen the screw(6ea) and remove the lower cover (A) from the steering wheel body. 2. Disconnect the heated steering wheel unit ...

Heated Steering wheel System Circuit Diagram
Terminal Function Housing Pin Function Wire color Pad A GND Back B HEATER Yellow C ...

See also:

Installation
1. Dowel pin of crankshaft setted about 3° with vertical center line. 2. Align the TDC marks (A) of the CVVT sprockets with the upper su ...

Child-protector rear door lock
The child safety lock is provided to help prevent children from accidentally opening the rear doors from inside the vehicle. The rear door safety locks should be used whenever children are in the ...

Heated Steering wheel Inpection
1. Measure a resistance of NTC and Heated pad. A. NTC resistance(Black / Yellow, Black) - 10.0 kΩ ± 10% (25°C(77°F)) ...
