Kia Rio: Input Speed Sensor Signal Waveform - Automatic Transaxle Control System - Automatic Transaxle System - Kia Rio UB 2012-2019 Service ManualKia Rio: Input Speed Sensor Signal Waveform

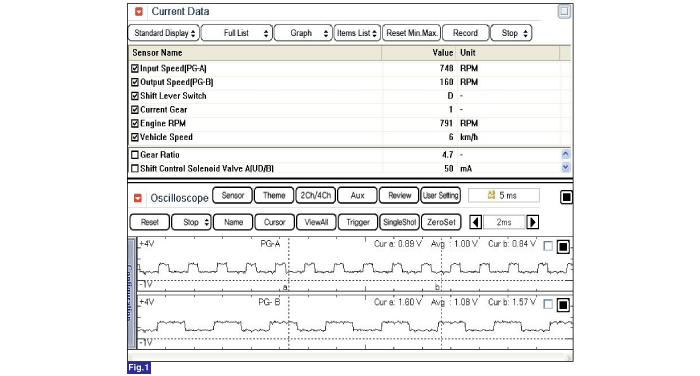

Fig 1) Input/Output speed sensor at low speed

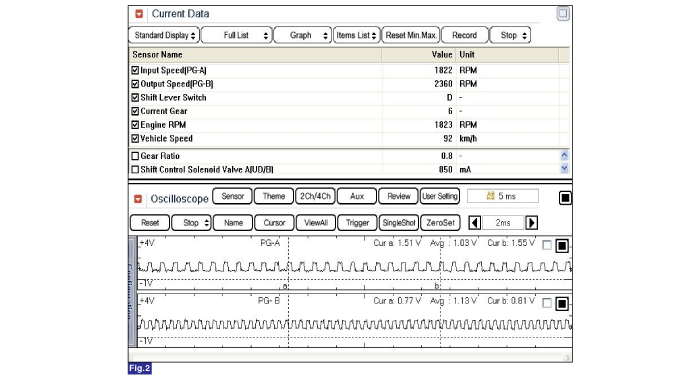

Fig 2) Input/Output speed sensor at high speed
Input Speed Sensor Circuit Diagram
...

Input Speed Sensor Inspection
1. Check signal waveform of Input & output speed sensor using the GDS. Specification: Refer to "Signal Wave Form" section. ...
