Kia Rio: Installation - Automatic Transaxle - Automatic Transaxle System - Kia Rio UB 2012-2019 Service ManualKia Rio: Installation

1.
Installation is the reverse of removal.


If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit. When installing the new oil seal, use the specialized tool (oil seal installer, 09452-26100).


After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
Х
Power steering fluid replacement and air bleeding. (Refer to "General information" in ST group)
Х
Adding automatic transaxle fluid. (Refer to "Hydraulic system (Fluid)" in this group)
Х
After servicing the automatic transaxle or TCM, clear the diagnostic trouble codes (DTC) using the GDS tool.
Diagnostic trouble codes (DTC) cannot be cleared by disconnecting the battery.
Х
When deleting diagnostic trouble code, use the GDS as possible.
Х

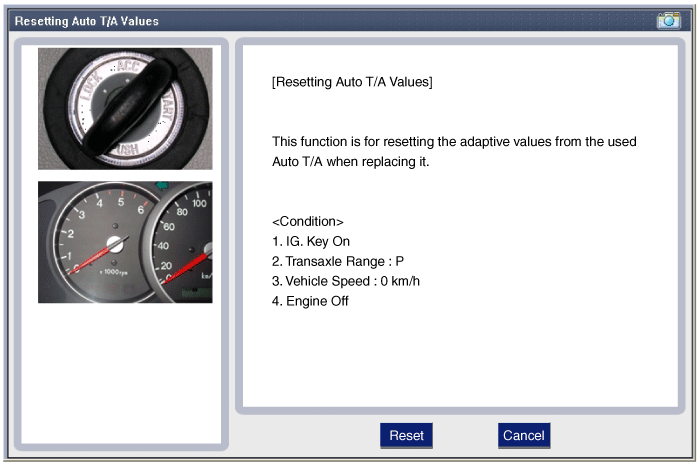

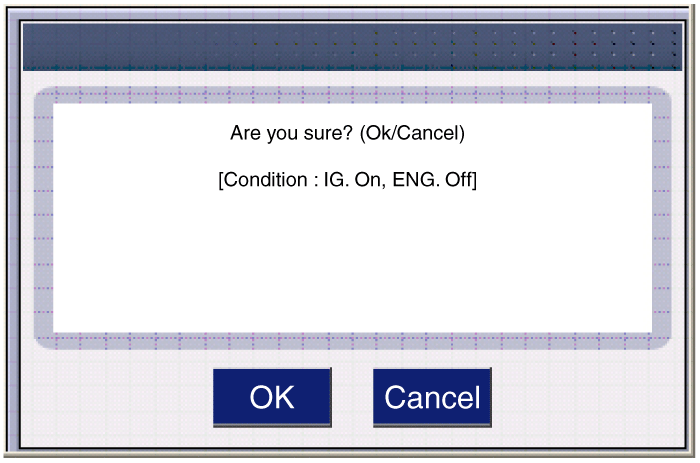

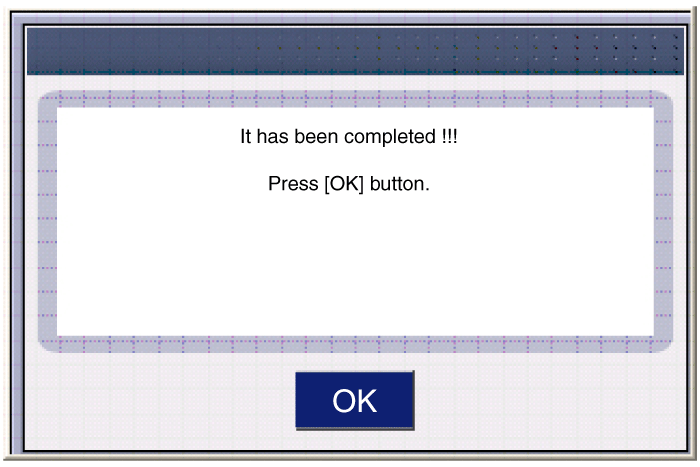

When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.




Х
Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup. (Refer to "Automatic transaxle control system (Repair procedures)" in this group)
