Kia Rio: Power Out Side Mirror Switch Inspection - Power Door Mirrors - Body Electrical System - Kia Rio UB 2012-2019 Service ManualKia Rio: Power Out Side Mirror Switch Inspection

1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim panel.
(Refer to the BD group - "Front door")
3.
Disconnect the connector from the power window switch module.


4.

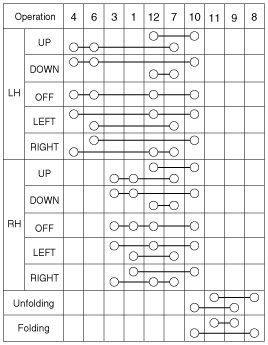

Check for continuity between the terminals in each switch position according to the table.
[Standard]


[Power Mirror Switch - With Folding Mirror]


[Power Mirror Switch - Without Folding Mirror]


Power Out Side Mirror Switch Component
...
