Kia Rio: Removal - Back View Camera System - Body Electrical System - Kia Rio UB 2012-2019 Service ManualKia Rio: Removal

1.
Remove the trunk trim in the trunk after removing the screws and clips.
(Refer to the BD group - "Tailgate")
2.

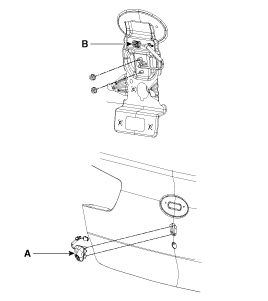

Remove the trunk garnish (A) after disconnecting the connector(B) and removing the nuts.


Description
Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position. This system is a supplemental system that shows behind the vehic ...

Installation
1. Install the back view camera. 2. Install the tailgate trim. ...
