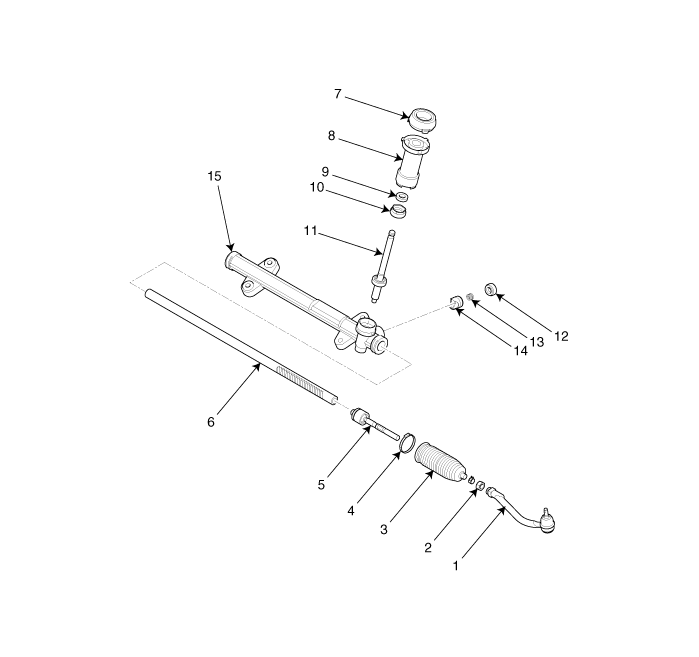

Kia Rio: Steering Gear box Components - Electric Power Steering - Steering System - Kia Rio UB 2012-2020 Service ManualKia Rio: Steering Gear box Components


1. Tie-rod end
2. Lock nut
3. Bellows clip
4. Bellows
5. Tie rod
6. Rack bar
7. Dust packing
8. Dust cap
9. Oil seal
10. Pinion plug
11. Pinion assembly
12. Yoke plug
13. Yoke spring
14. Support yoke assembly
15. Rack housing
