Kia Rio: Troubleshooting
| 1. |
The lamp switch inputs can be checked using the GDS.
|
| 2. |
To check the input value of lamp switch, select option "Body Control
Module".
|
| 3. |

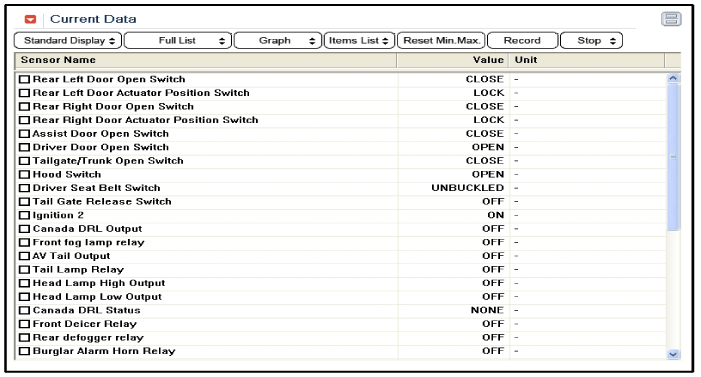

To consult the present input/output value of BCM, "Current DATA".
It provides information of BCM input/output conditions of door lock/unlock,
lamp control and power window timer etc.
|
| 4. |

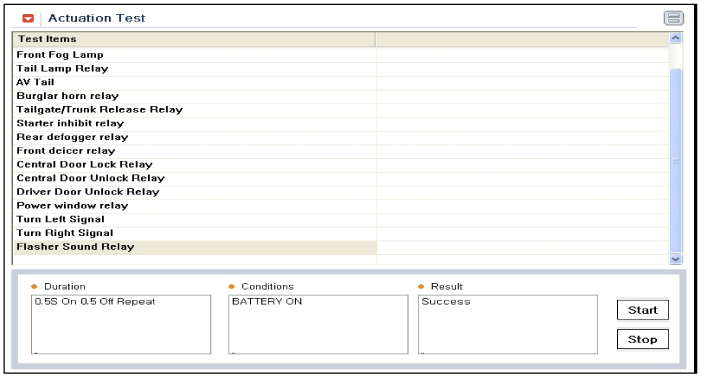

To check the input value of lamp switch in force mode, select
option "Actuation Test of smart junction box".
|
| Symptom |
Possible cause |
Remedy |
| One lamp does not light (all exterior) |
Bulb burned out |
Replace bulb |
| Socket, wiring or ground faulty |
Repair if necessary |
|
| Head lamps do not light |
Bulb burned out |
Replace bulb |
| Head lamp relay faulty |
Check relay |
|
| Lighting switch faulty |
Check switch |
|
| Wiring or ground faulty |
Repair if necessary |
|
| Tail lamps and license plate lamps do not light |
Bulb burned out |
Replace bulb |
| Tail lamp fuse (10A) blown |
Check for short and replace fuse |
|
| Tail lamp relay faulty |
Check relay |
|
| Lighting switch faulty |
Check switch |
|
| Wiring or ground faulty |
Repair if necessary |
|
| DRL lamp does not light |
Bulb burned out |
Replace bulb |
| Module 2 fuse (10A) blown |
Check for short and replace fuse |
|
| Wiring or ground faulty |
Repair if necessary |
|
| Stop lamps do not light |
Bulb burned out |
Replace bulb |
| Stop lamp fuse (15A) blown |
Check for short and replace fuse |
|
| Stop lamp switch faulty |
Adjust or replace switch |
|
| Wiring or ground faulty |
Repair if necessary |
|
| Stop lamps do not turn off |
Stop lamp switch faulty |
Repair or replace switch |
| Instrument lamps do not light (Tail lamps light) |
Wiring or ground faulty |
Repair if necessary |
| Turn signal lamp does not flash on one side |
Bulb burned out |
Replace bulb |
| Turn signal switch faulty |
Check switch |
|
| Wiring or ground faulty |
Repair if necessary |
|
| Turn signal lamps do not light |
Bulb burned out |
Replace bulb |
| Turn signal lamp fuse (15A) blown |
Check for short and replace fuse |
|
| Flasher unit faulty |
Check flasher unit |
|
| Turn signal switch faulty |
Check switch |
|
| Wiring or ground faulty |
Repair if necessary |
|
| Hazard warning lamps do not light |
Bulb burned out |
Replace bulb |
| Hazard warning lamp fuse (15A) blown |
Check for short and replace fuse |
|
| Hazard switch faulty |
Check switch |
|
| Wiring or ground faulty |
Repair if necessary |
|
| Flasher rate too slow or too fast |
Lamps' wattages are smaller or larger than specified |
Replace lamps |
| Back up lamps do not light |
Bulb burned out |
Replace bulb |
| Back up lamp fuse (10A) blown |
Check for short and replace fuse |
|
| Back up lamp switch (M/T) faulty |
Check switch |
|
| Transaxle range switch (A/T) faulty |
Check switch |
|
| Wiring or ground faulty |
Repair if necessary |
|
| Front fog lamps do not light |
Bulb burned out |
Replace bulb |
| Front fog lamp fuse (10A) blown |
Check for short and replace fuse |
|
| Front fog lamp relay faulty |
Check relay |
|
| Front fog lamp switch faulty |
Check switch |
|
| Wiring or ground faulty |
Repair if necessary |
|
| Room lamp does not light |
Bulb burned out |
Replace bulb |
| Room lamp fuse (10A) blown |
Check for short and replace fuse |
|
| Map lamp switch faulty |
Check switch |
|
| Wiring or ground faulty |
Repair if necessary |
|
| Luggage room lamp does not light |
Bulb burned out |
Replace bulb |
| Room lamp fuse (10A) blown |
Check for short and replace fuse |
|
| Luggage room lamp switch faulty |
Check switch |
|
| Wiring or ground faulty |
Repair if necessary |
