Kia Rio: AVN Head Unit Components

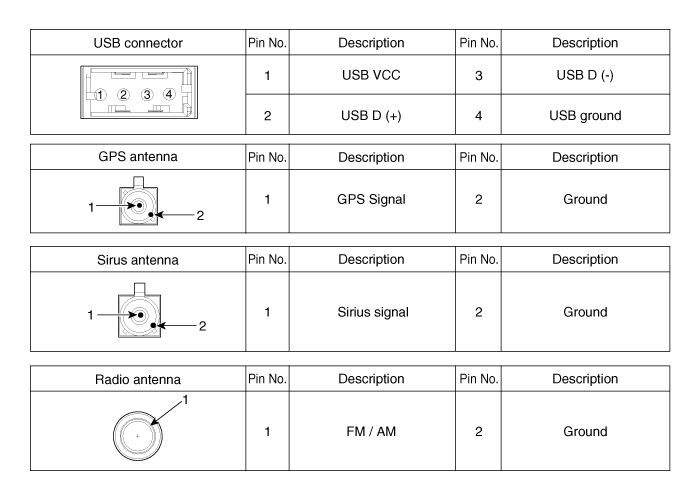

| AVN (A/V & Navigation) Head Unit Connector |
| NO |
Connector A |
Connector B |
| 1 |
Rear left spearker + |
- |
| 2 |
Front left speaker + |
- |
| 3 |
Front right speaker + |
- |
| 4 |
Rear right speaker + |
- |
| 5 |
Back view camera ground |
Remote switch |
| 6 |
Back view camera power |
- |
| 7 |
ALT_L |
- |
| 8 |
Illumination + |
AUX video |
| 9 |
R position |
AUX audio_R |
| 10 |
Rear left spearker - |
AUX audio ground |
| 11 |
Front left speaker - |
MIC + |
| 12 |
Front right speaker - |
ACC |
| 13 |
Rear right speaker - |
Battery + |
| 14 |
Back view camera video ground |
- |
| 15 |
Back view camera video power |
A/V tail |
| 16 |
Door unlock |
P position |
| 17 |
Illumination - |
Speed |
| 18 |
Antenna power |
Remote ground |
| 19 |
AUX video ground |
|
| 20 |
AUX detect |
|
| 21 |
AUX audio_L |
|
| 22 |
MIC - |
|
| 23 |
Ground |
|
| 24 |
Ground |
