Kia Rio: Blower Unit Component Location

Blower

...

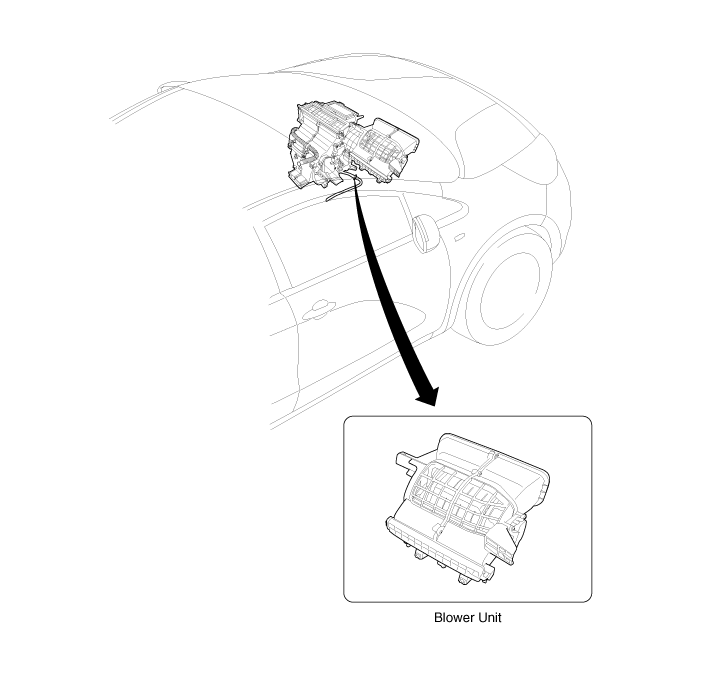

Blower Unit Components

1. Blower Motor 2. Blower Fan 3. Clamp 4. NVH Pad 5. Connection Case 6. Cluster Ionizer (FATC only) 7. Intake Case (Left) 8. Intake Seal 9. NVH Pad 10. Intake ...
