Kia Rio: Components
| 1. Cylinder head cover 2. Cylinder head cover gasket 3. Cylinder head assembly 4. Cylinder head gasket 5. Camshaft position sensor |
6. Camshaft bearing cap 7. Camshaft front bearing cap 8. OCV (Oil Control Valve) adapter 9. O-ring |

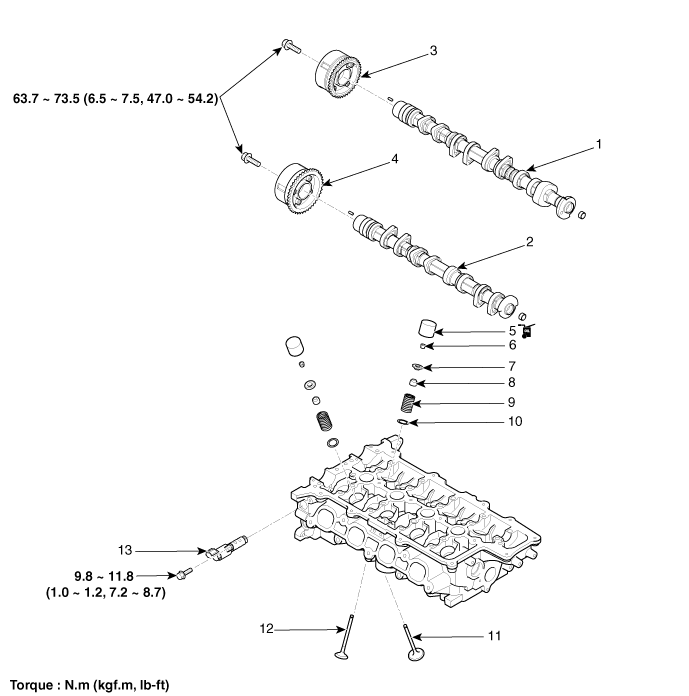

| 1. Exhaust camshaft 2. Intake camshaft 3. Exhaust CVVT assembly 4. Intake CVVT assembly 5. Mechanical Lash Adjuster (MLA) 6. Retainer lock 7. Retainer |
8. Valve stem seal 9. Valve spring 10. Valve spring seat 11. Intake valve 12. Exhaust valve 13. Oil Control Valve (OCV) |
Cylinder Head
...
Removal
Engine removal is not required for this procedure.
•
Use fender covers to avoid damaging ...
See also:
Troubleshooting
Problem Symptoms Table
Use the table below to help you find the cause of theproblem. The numbers
indicate the priority of the likecause of the problem. Check each part in order.
...
Description
Exhaust emissions (CO, HC, NOx) are controlled by a combination of engine
modifications and the addition of special control components.
Modifications to the combustion chamber, intake manifo ...
Start/Stop Button Removal
1.
Disconnect the negative(-) battery terminal.
2.
Remove the Audio.
(Refer to the BE group - "Audio")
3. ...
