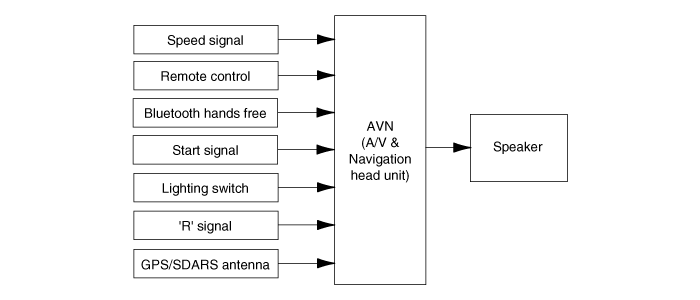

Kia Rio: System Block Diagram

Components Location

1. AVN (A/V & Navigation head unit) 2. Midrange speaker 3. Roof antenna (GPS Radio) 4. Front door speaker 5. Rear door speaker 6. Antenna feeder cable 7. Feeder ca ...

Description

Limitations Of The Navigation system GPS Signal Reception State As the GPS satellite frequency is received/transmitted in straight lines, reception may not work if something is placed on ...
