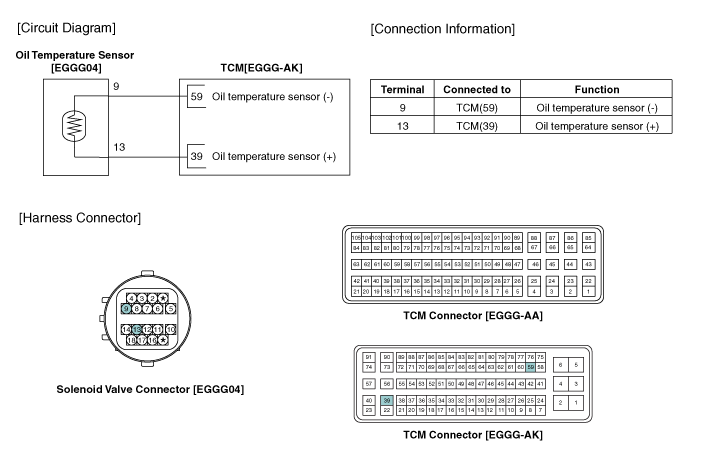

Kia Rio: Transaxle Oil Temperature Sensor Circuit Diagram - Automatic Transaxle Control System - Automatic Transaxle System - Kia Rio UB 2012-2023 Service ManualKia Rio: Transaxle Oil Temperature Sensor Circuit Diagram

Transaxle Oil Temperature Sensor Inspection


Transaxle Oil Temperature Sensor Specifications
▷ Type: Negative Thermal Coefficient Type Temp.[(°C)°F] Resistance (kΩ) (-40)-40 48.1 (-20)-4.0 15.6 (0)32.0 ...

Transaxle Oil Temperature Sensor Inspection
1. Turn ignition switch OFF. 2. Disconnect the solenoid valve connector. 3. Measure resistance between sensor ...
