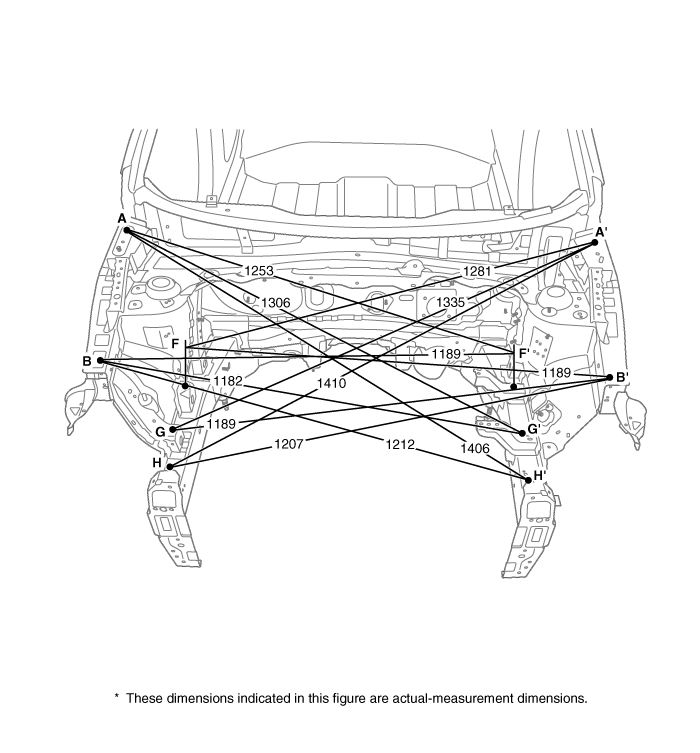

Kia Rio: 4Door Front Body B - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2021 Service ManualKia Rio: 4Door Front Body B





Hood hinge mounting hole (Ø11)

Fender apron upper member tooling hole (Ø6.6)
Engine mounting hole (Ø11)




Transaxle mounting hole (Ø12)

Engine mounting hole (Ø12)

Transaxle mounting hole (Ø15)




Front side member tooling hole (Ø9)

Front side member tooling hole (Ø6.6)

Front end module mounting hole (Ø9)




Front end module mounting hole (Ø9)




4Door Front Body A
Hood hinge mounting hole (Ø11) Fender apron upper member tooling hole (Ø6.6) Front shock absorber hou ...

4Door Front Body C
Engine mounting hole (Ø11) Transaxle mounting hole (Ø12) Engine mounting hole (Ø12) ...
