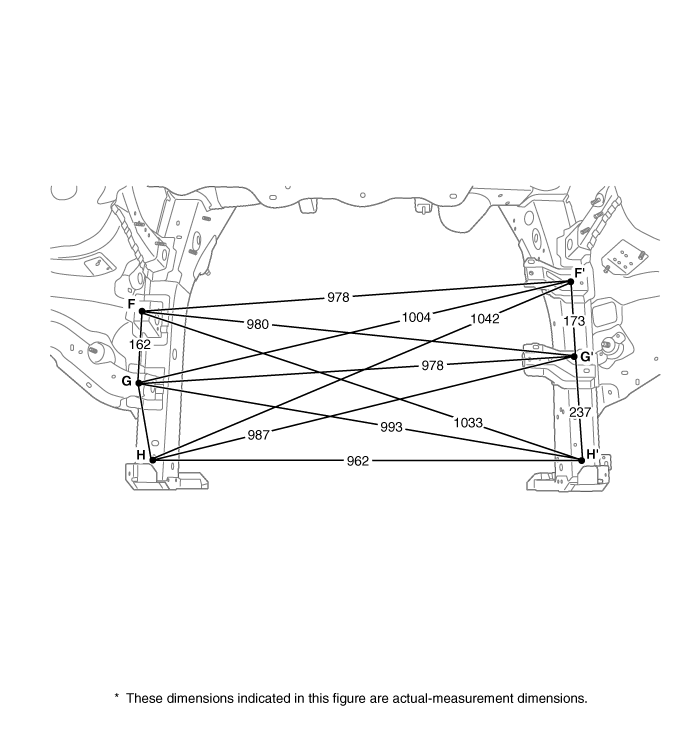

Kia Rio: 4Door Front Body C - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2019 Service ManualKia Rio: 4Door Front Body C





Engine mounting hole (Ø11)

Transaxle mounting hole (Ø12)

Engine mounting hole (Ø12)




Transaxle mounting hole (Ø15)

Front side member tooling hole (Ø9)

Front side member tooling hole (Ø6.6)


4Door Front Body B
Hood hinge mounting hole (Ø11) Fender apron upper member tooling hole (Ø6.6) Engine mounting hole (&O ...

4Door Side Body
Front side member tooling hole (Ø12) Fender apron upper member tooling hole (Ø7) Front door upper hinge ...
