Kia Rio: 4Door Interior - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2019 Service ManualKia Rio: 4Door Interior






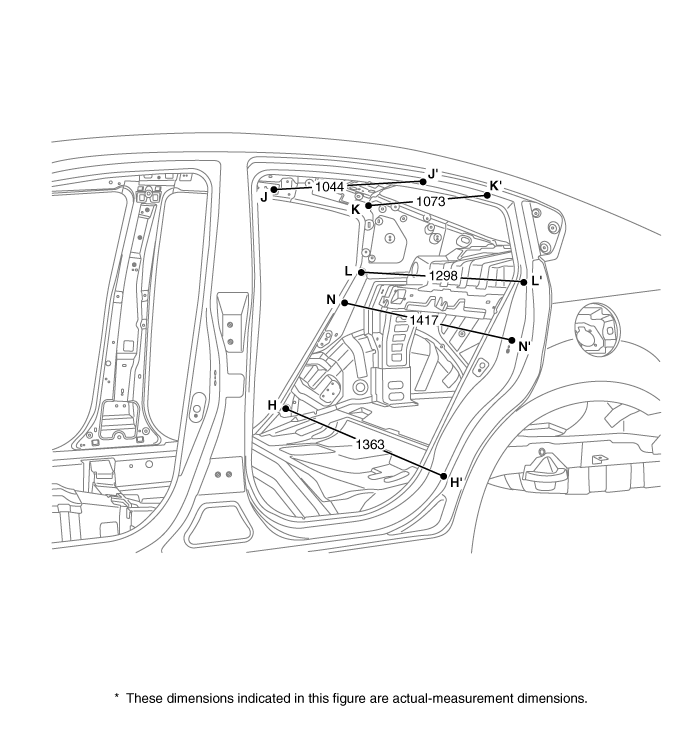

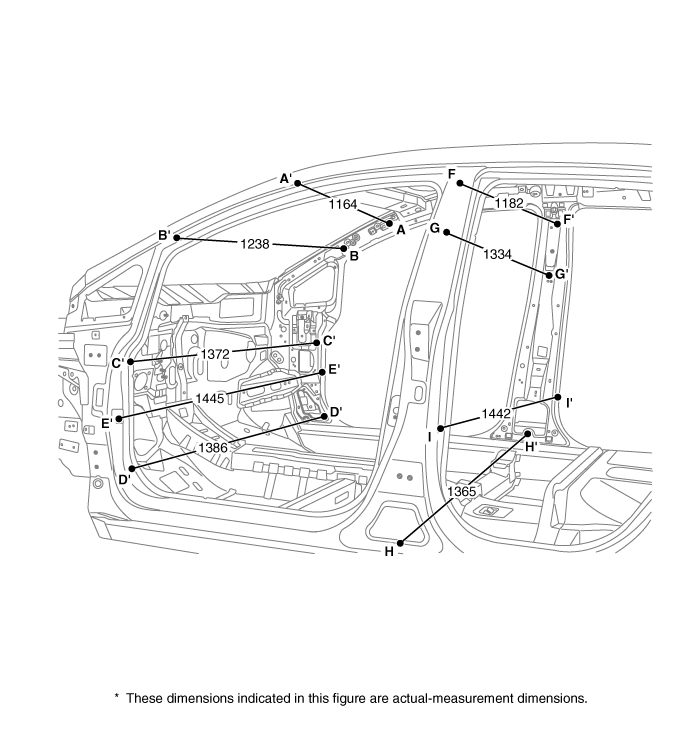

Front pillar trim mounting hole (Ø8.5)

Curtain airbag mounting hole (Ø6.6)

Cowl crossbar mounting hole (Ø6.6)




Front pillar inner panel tooling hole
(7X12)
Front door checker mounting hole
(Ø11)
Seat belt height adjuster mounting hole (Ø16)




Seat belt height adjuster mounting hole (Ø16)
Seat belt retractor mounting hole
(Ø12)
Rear door checker mounting hole
(Ø11)





Curtain airbag mounting hole (Ø6.6)

Curtain airbag mounting hole (Ø6.6)

Quarter inner lower panel tooling hole
(Ø8.5)




Quarter inner lower panel tooling hole
(Ø10)
Rear door striker mounting hole
(Ø13)
