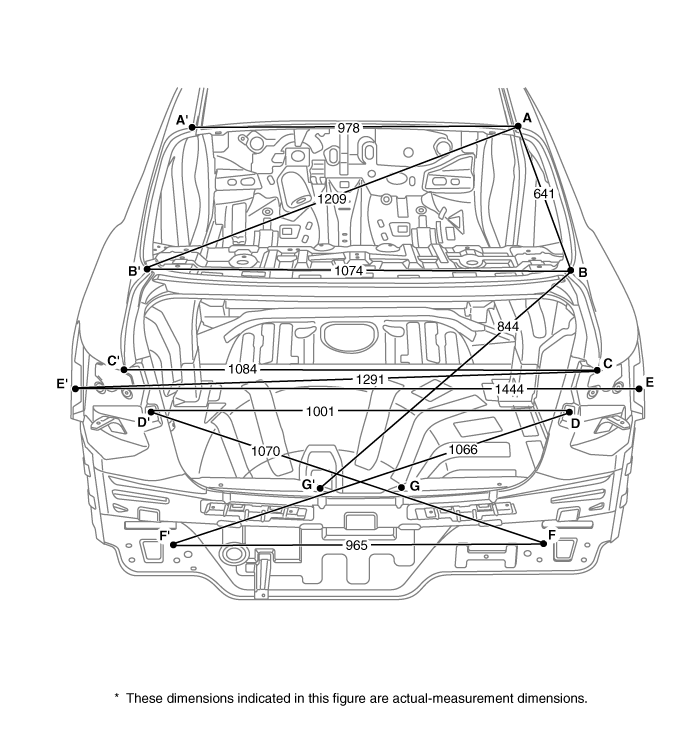

Kia Rio: 4Door Rear Body - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2019 Service ManualKia Rio: 4Door Rear Body





Side outer panel rear corner

Side outer panel rear corner

Side outer panel rear corner




Rear combination lamp mounting hole
(8.5X8.5)
Rear combination lamp mounting hole
(5X9)
Rear bumper mounting hole (Ø10)




Rear bumper mounting hole (10X14)

Rear transverse trim mounting hole
(Ø8)


4Door Interior
Front pillar trim mounting hole (Ø8.5) Curtain airbag mounting hole (Ø6.6) Cowl crossbar mounti ...

4Door Under Body
Projected Dimensions Front side member tooling hole (Ø6.6) Front side member tooling hole (Ø6.6) ...
