Kia Rio: 5Door Front Body C - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2019 Service ManualKia Rio: 5Door Front Body C

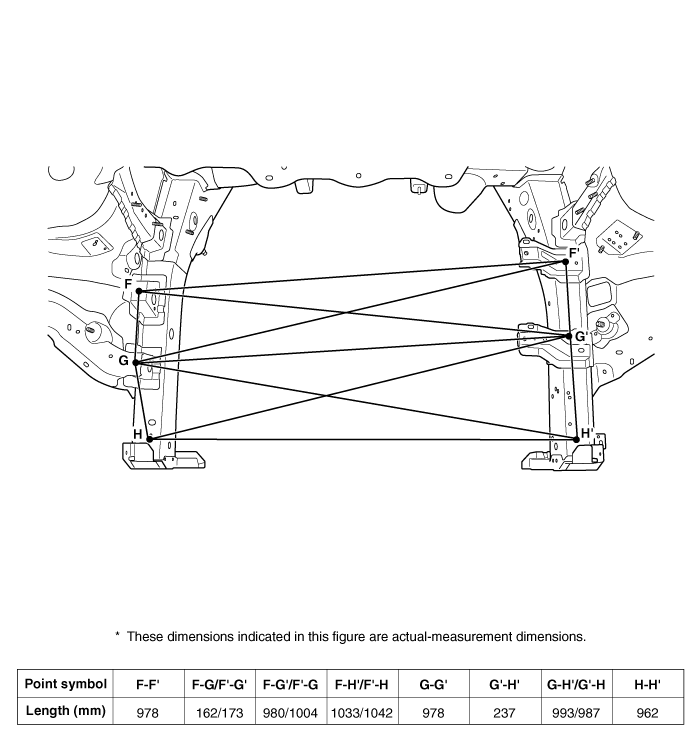

Engine mounting hole (Ø12)

Transaxle mounting hole (Ø12)

Engine mounting hole (Ø15)




Transaxle mounting hole (Ø15)

Front side member tooling hole (Ø9)

Front side member tooling hole (Ø6.6)


5Door Front Body B
Hood hinge mounting hole (Ø11) Fender apron upper member tooling hole (Ø6.6) Engine mounting hole (&O ...

5Door Side Body A
Front side member tooling hole (Ø12) Fender apron upper member tooling hole (Ø12) Front door upper hing ...
