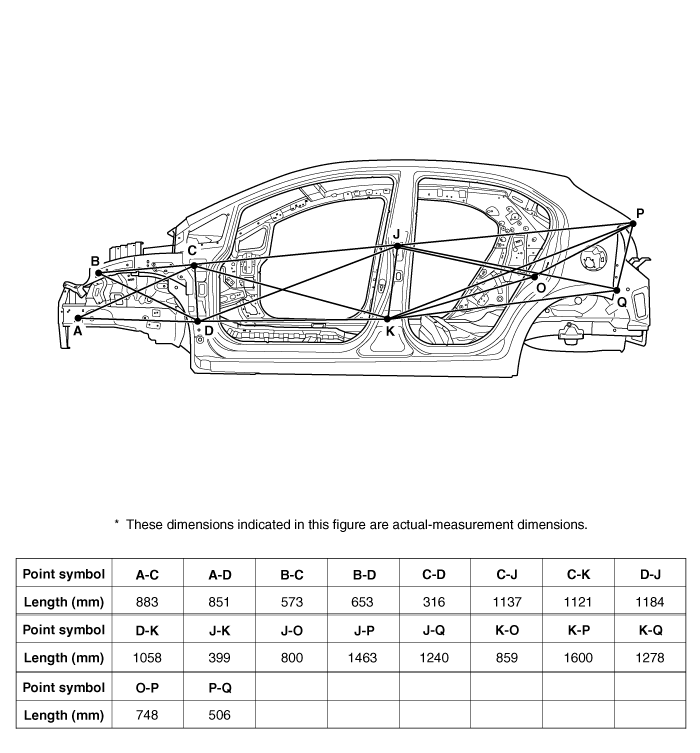

Kia Rio: 5Door Side Body A - Body Dimensions - Body (Interior and Exterior) - Kia Rio UB 2012-2020 Service ManualKia Rio: 5Door Side Body A





Front side member tooling hole (Ø12)

Fender apron upper member tooling hole (Ø12)
Front door upper hinge mounting hole
(Ø13)




Front door lower hinge mounting hole
(Ø13)
Rear door upper hinge mounting hole
(Ø13)
Rear door lower hinge mounting hole
(Ø13)




Rear door switch mounting hole (Ø9)

Side outer panel rear corner

Rear bumper mounting hole (8.5X8.5)


5Door Front Body C
Engine mounting hole (Ø12) Transaxle mounting hole (Ø12) Engine mounting hole (Ø15) ...

5Door Side Body B
Side outer panel notch Side outer panel notch Side outer panel notch ...
