Kia Rio: Back-up Lamp Switch Inspection - Manual Transaxle Components - Manual Transaxle System - Kia Rio UB 2012-2019 Service ManualKia Rio: Back-up Lamp Switch Inspection

1.
Disconnect the back up lamp switch connector (A).


2.

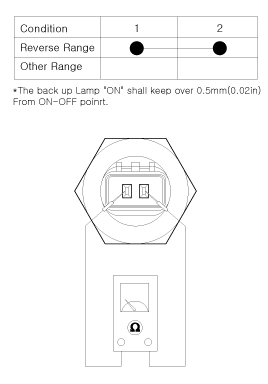

Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.
3.
If necessary, repair or replace the backup lamp switch.


Back-up Lamp Switch Specifications
1. Working voltage: DC 10~15V 2. Operating force: 3.0kg Max. 3. Voltage drop: - 0.4V 4. ...

Back-up Lamp Switch Replacement
1. Disconnect the back up lamp switch connector (A). 2. Remove the back up lamp switch (A). 3. ...
