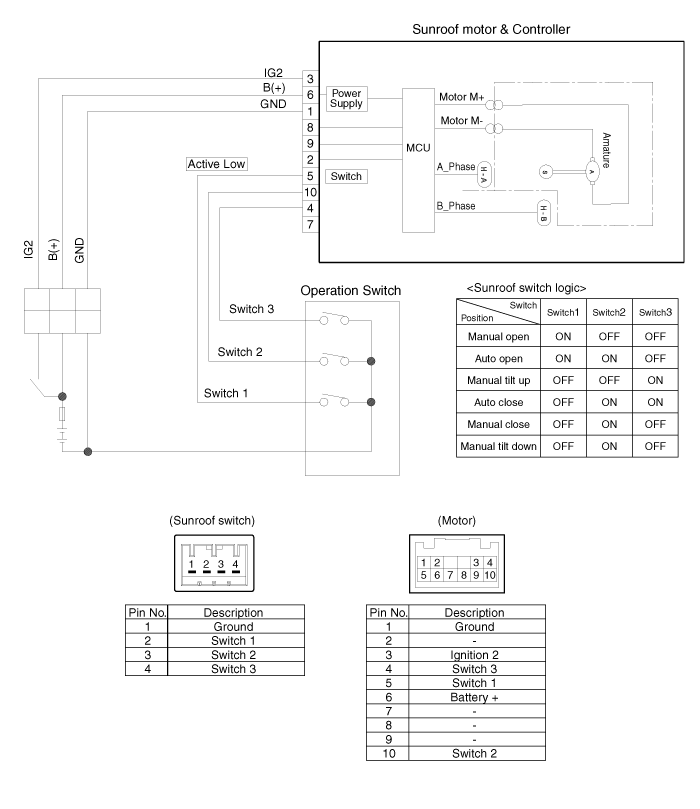

Kia Rio: Circuit Diagram - Sun Roof - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Circuit Diagram

Sunroof Switch Inspection


Component Location
1. Sunroof 2. Sunroof switch 3. Sunroof motor & controller ...

Sunroof Switch Inspection
1. Disconnect the negative (-) battery terminal. 2. Using a screwdriver or remover, remove the overhead console cover (A). ...
