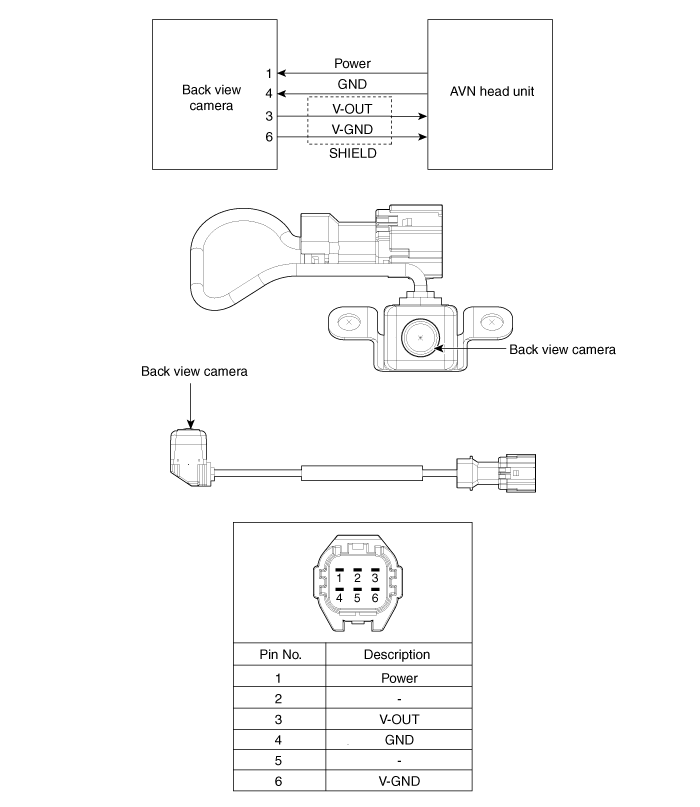

Kia Rio: Circuit Diagram - Back View Camera System - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Circuit Diagram

Description


Component Location
1. Back view camera 2. AVN (AV & Navigation) head unit ...

Description
Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position. This system is a supplemental system that shows behind the vehic ...
