Kia Rio: TPMS Receiver Diagnosis procedure by using diagnostic device - Tire Pressure Monitoring System - Suspension System - Kia Rio UB 2012-2019 Service ManualKia Rio: TPMS Receiver Diagnosis procedure by using diagnostic device

As manual for diagnosis methods by using diagnosis device, the main contents are as follows:
1.
Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2.
Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

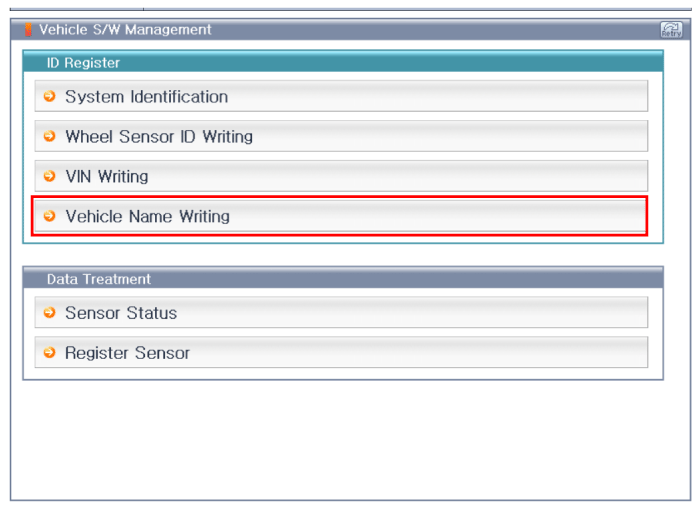

[Vehicle name input initialization]

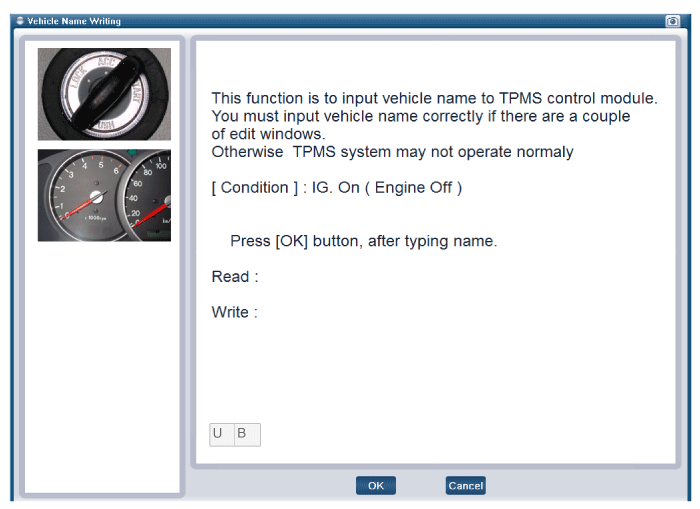

[Vehicle Name Writing 1]

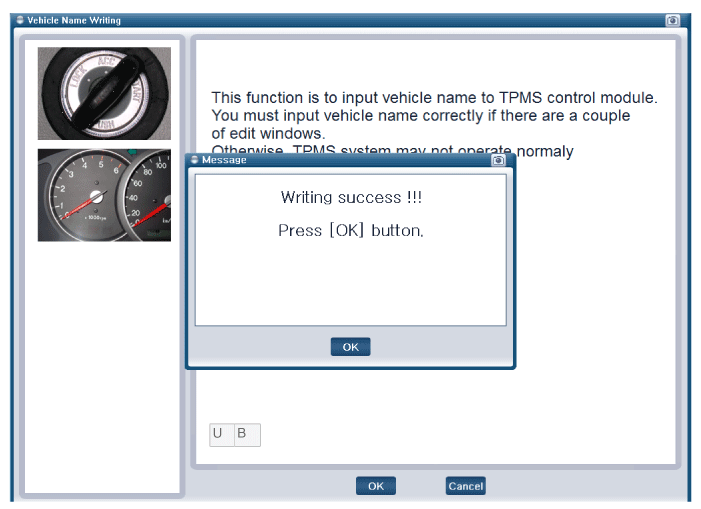

[Vehicle Name Writing 2]




Х
Check the specifications for the vehicle and the selected item option, press the OK button and enter is completed.
Х
When you input the vehicle name, check the tire inch and exactly input inch option to device.

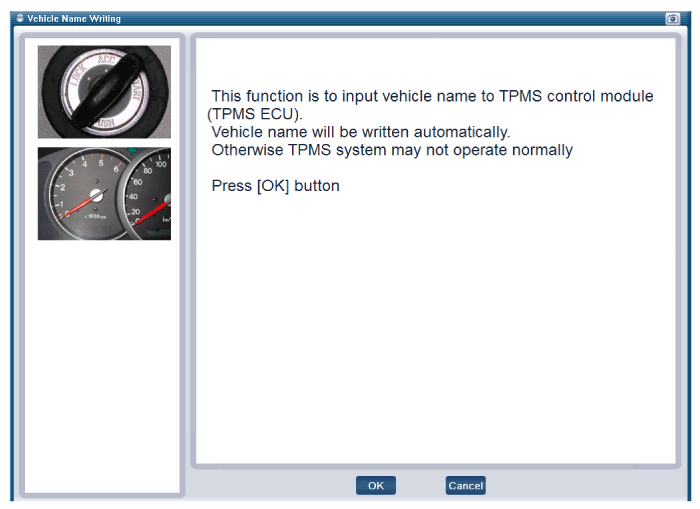

[Vehicle Name Writing 3]

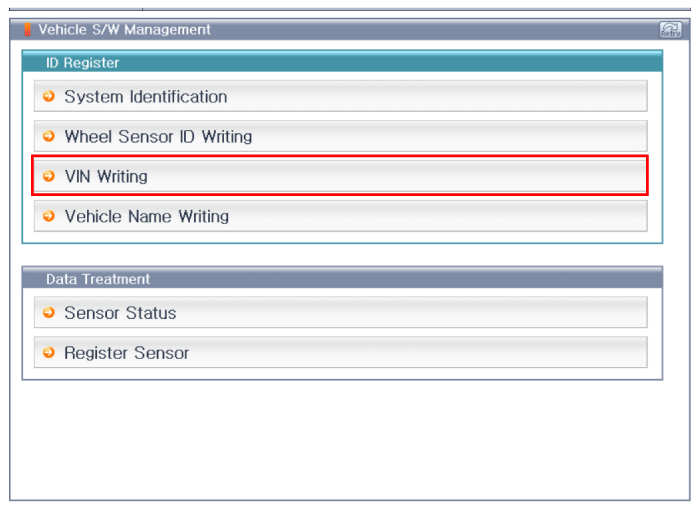

[VIN input initialization]

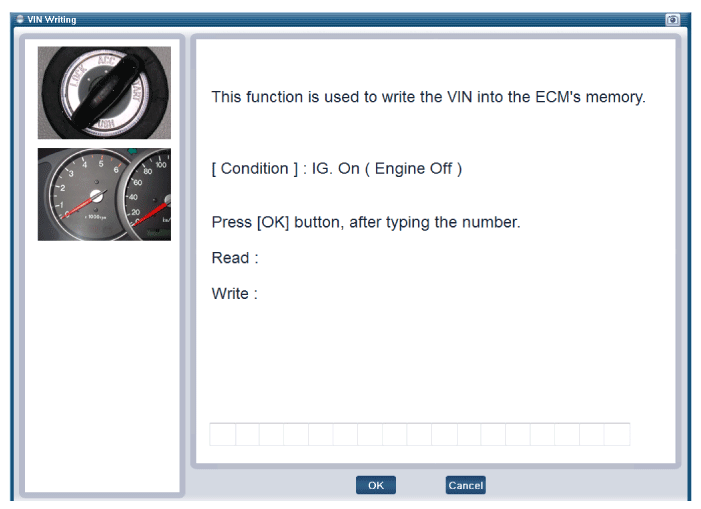

[VIN Writing 1]

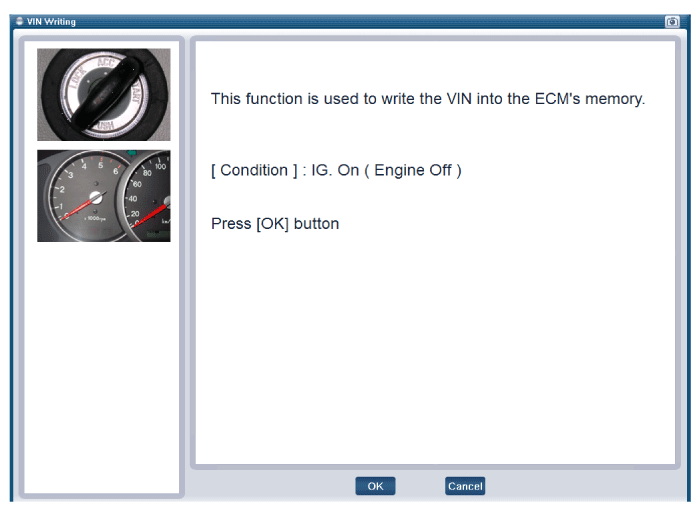

[VIN Writing 2]

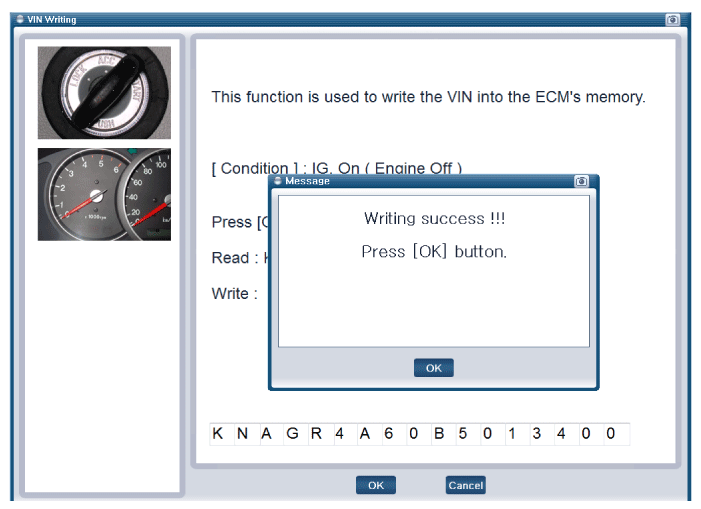

[VIN Writing 3]


TPMS Receiver Replacement
   When the receiver first arrives for replacement: 1) It will be in Virgin State. ...
