Kia Rio: Circuit Diagram - Manifold Absolute Pressure Sensor (MAPS) - Engine Control System - Engine Control / Fuel System - Kia Rio UB 2012-2019 Service ManualKia Rio: Circuit Diagram

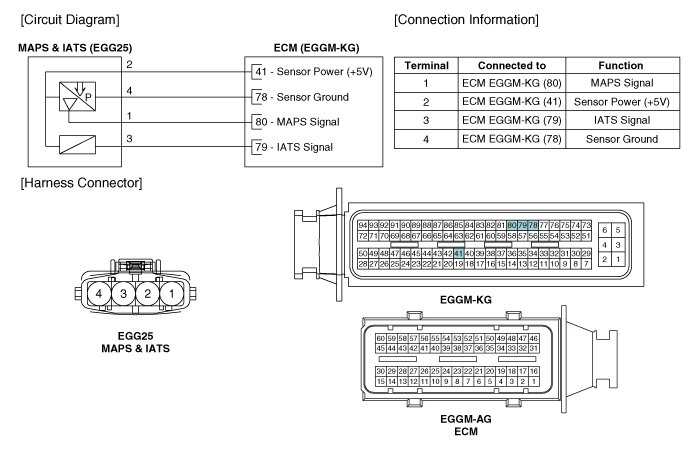

(M/T)

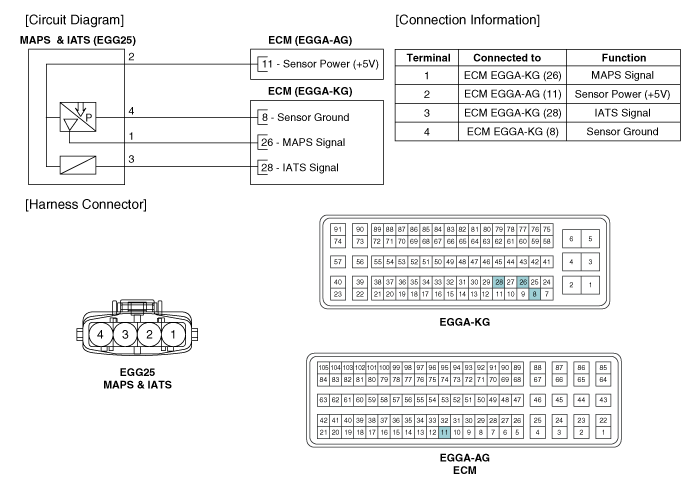

(A/T)

Inspection


Signal Waveform
...

Inspection
1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the MAPS at idle and IG ON. Spe ...
