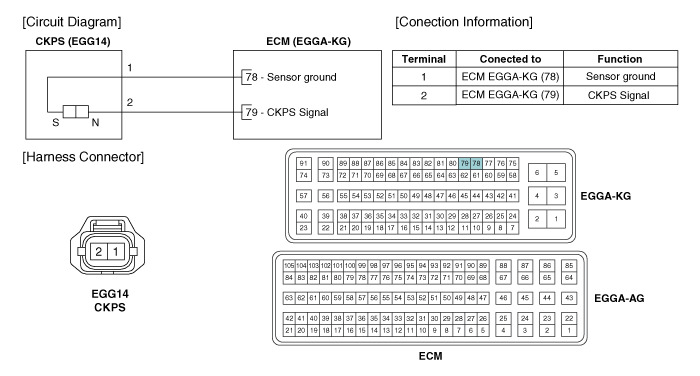

Kia Rio: Circuit Diagram - Crankshaft Position Sensor (CKPS) - Engine Control System - Engine Control / Fuel System - Kia Rio UB 2012-2020 Service ManualKia Rio: Circuit Diagram

(M/T)


(A/T)

Inspection


Waveform
This example shows a typical Crankshaft Position Sensor(CkPS) and Camshaft Position Sensor(CMPS) waveform at idle.The PCM controls the injection and ignition timing by using these sig ...

Inspection
1. Check signal waveform of CKPS and CMPS using a GDS. Specification: Refer to “Waveform” ...
