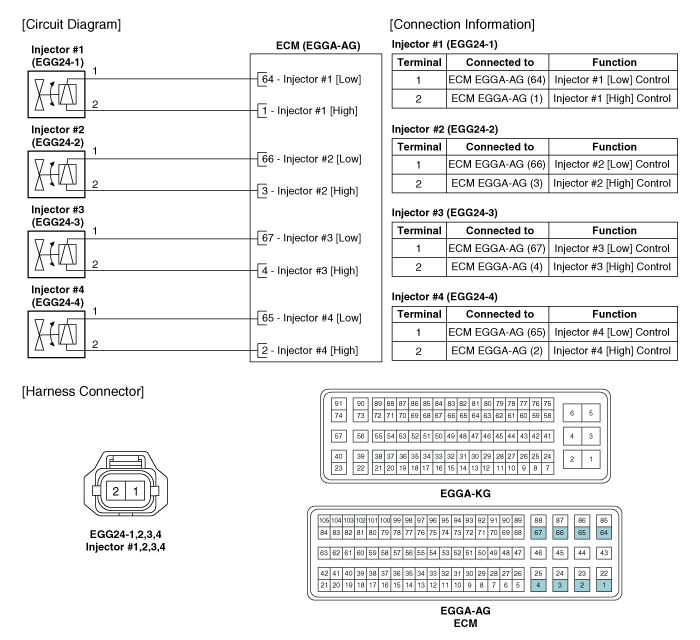

Kia Rio: Circuit Diagram - Injector - Engine Control System - Engine Control / Fuel System - Kia Rio UB 2012-2019 Service ManualKia Rio: Circuit Diagram

(M/T)


(A/T)

Inspection


Signal Waveform
The three waveforms below are taken from the #1 and #4 injectors. The top waveform is from the high side (feed side) of the #1 and #4 injectors, while the middle waveform is from the low side ...

Inspection
1. Turn the ignition switch OFF. 2. Disconnect the injector connector. 3. Measure resistance between the inject ...
