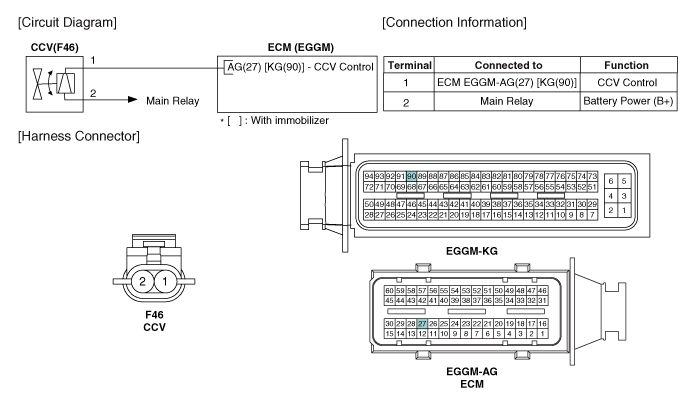

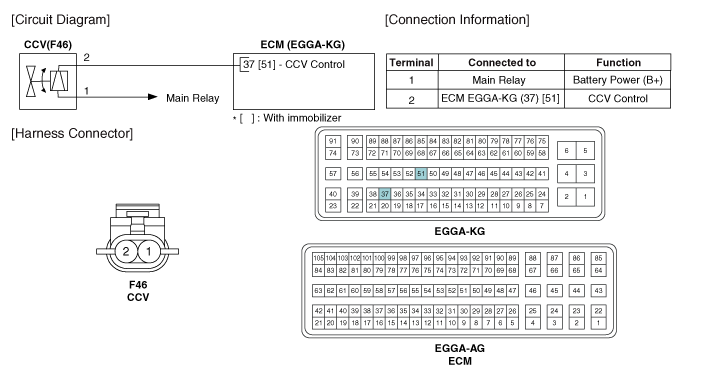

Kia Rio: Circuit Diagram

Specification

Item Specification Coil Resistance (Ω) 19.8 ~ 20.8 [20°C(68°F) ...

Inspection

1. Turn the ignition switch OFF. 2. Disconnect the CCV connector. 3. Measure resistance between the CCV termina ...
