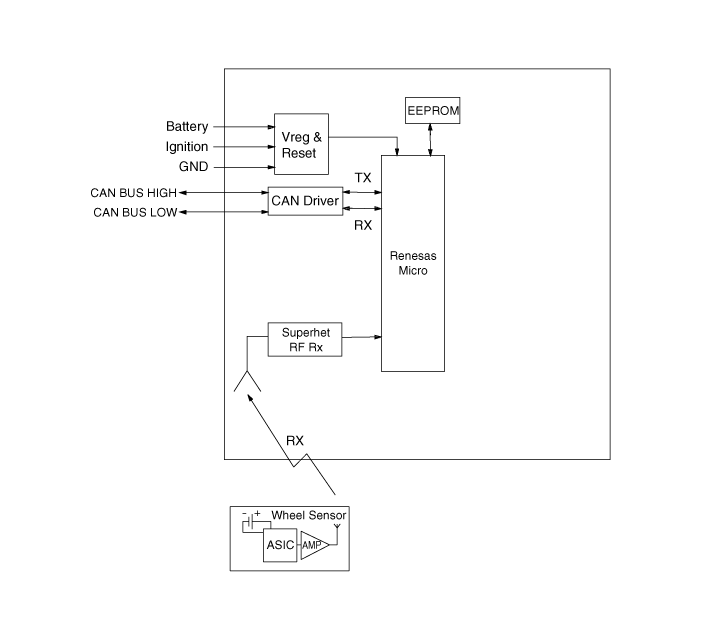

Kia Rio: Circuit Diagram - Tire Pressure Monitoring System - Suspension System - Kia Rio UB 2012-2020 Service ManualKia Rio: Circuit Diagram

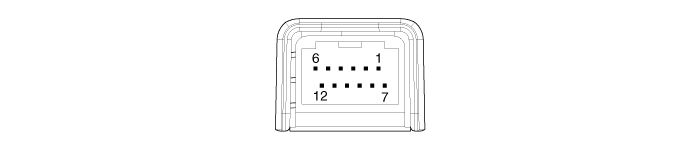

Hamess Connector


Pin No.
Discription
Remark
1
-

2
-

3
-

4
Vehicle Ground

5
CAN_HIGH

6
Battery

7
-

8
-

9
-

10
-

11
CAN_LOW

12
Ignition
