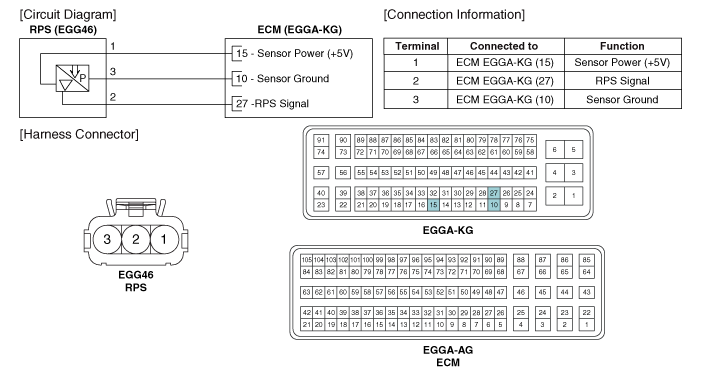

Kia Rio: Circuit Diagram

 - Rail Pressure Sensor (RPS) - Engine Control System - Engine Control / Fuel System - Kia Rio UB 2012-2020 Service ManualKia Rio: Circuit Diagram

(M/T)


(A/T)

Inspection


Signal Waveform
...

Inspection
1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the RPS at idle and various engine speed. ...
