Kia Rio: Clutch & Brake Components Location - Clutch & Brake - Automatic Transaxle System - Kia Rio UB 2012-2020 Service ManualKia Rio: Clutch & Brake Components Location

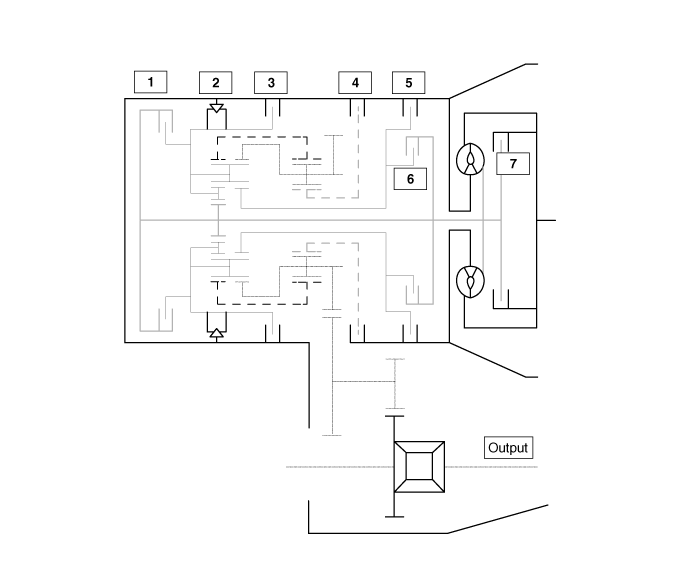

1. Overdrive clutch (OD/C)
2. One way clutch (OWC)
3. Low & Reverse brake (LR/B)
4. Underdrive brake (UD/B)
5. 26 brake(26/B)
6. 35R clutch (35R/C)
7. Damper clutch (D/C)

Clutch & Brake
The 6-spd automatic transaxle consists of an overdrive clutch (OD/C), a one-way clutch (OWC), a lower and reverse brake (LR/B), an underdrive brake (UD/B), a 26 brake (26/B), and a 35R clutch ...

Clutch & Brake Power Flow Chart
P,N UD/B LR/B 26/B 35R/C OD/C OWC ● ▣ Direction of Rotation ...
