Kia Rio: Component Location - Indicators And Gauges - Body Electrical System - Kia Rio UB 2012-2019 Service ManualKia Rio: Component Location

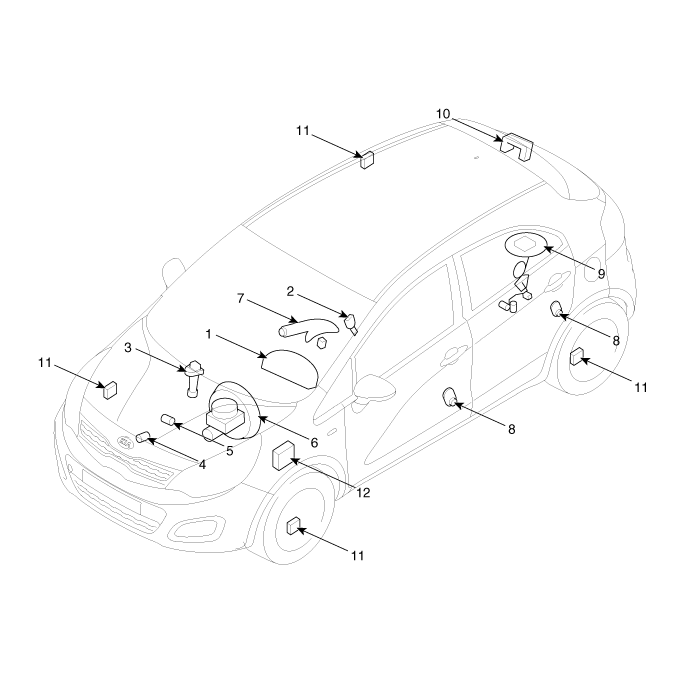

1. Instrument cluster assembly
2. Seat belt switch
3. Vehicle speed sensor
4. Engine coolant temperature sender
5. Oil pressure switch
6. Brake fluid level warning switch
7. Parking brake switch
8. Door switch
9. Fuel gauge sender
10. Tailgate open switch
11. Wheel speed sensor
12. ABS ECU

Indicators And Gauges
...

Instrument Cluster Components
Pin No. Description Pin No. Description 1 Cluster ground 21 S ground 2 P ground 22 Fuel (-) ...
