Kia Rio: TJ Joint Components - Driveshaft Assembly - Driveshaft and axle - Kia Rio UB 2012-2019 Service ManualKia Rio: TJ Joint Components

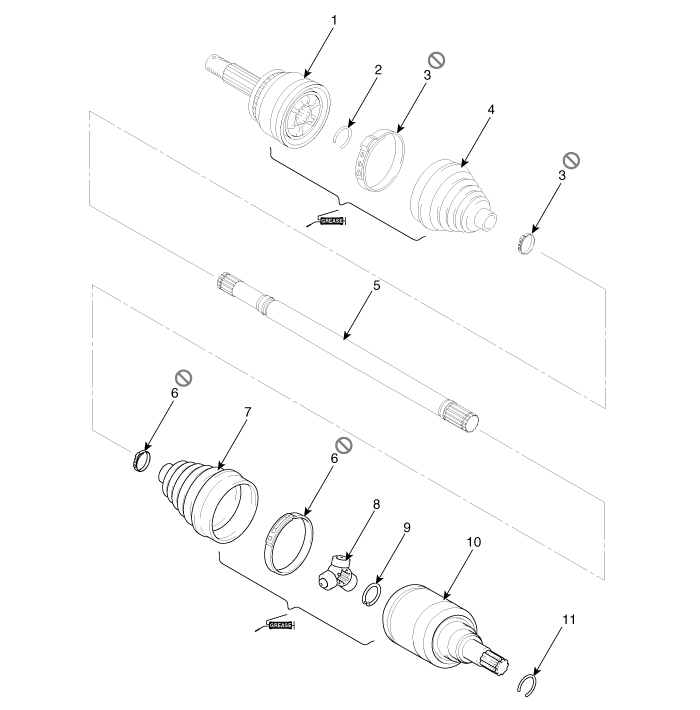

[LH]


1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly
9. Snap ring
10. TJ case
11. Snap ring

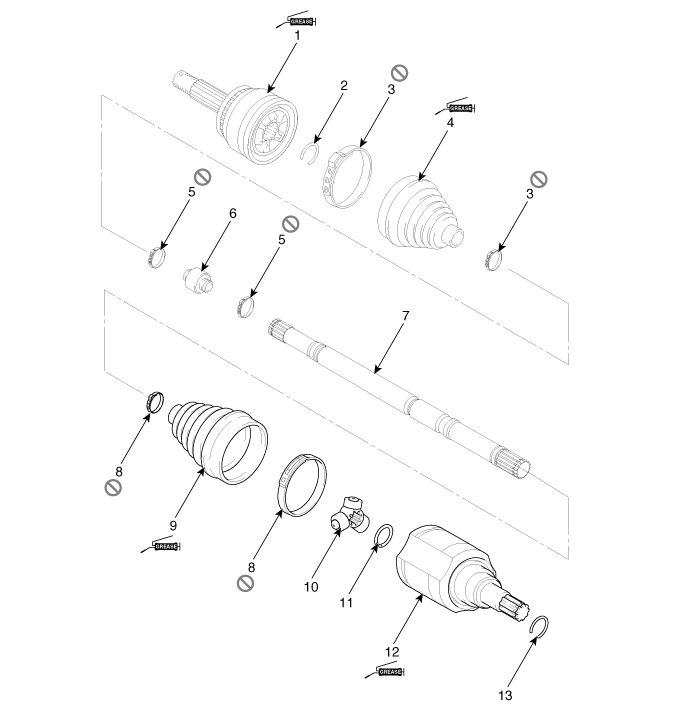

[RH]


1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Snap ring
12. TJ case
13. Circlip

Front Driveshaft Inspection
1. Check the driveshaft boots for damage and deterioration. 2. Check the driveshaft spline for wear or damage. 3. ...

TJ Joint Replacement
   • Special grease must be applied to the driveshaft joint. Do not substitute with another ...
