Kia Rio: Component Location - Auto Lighting Control System - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Component Location

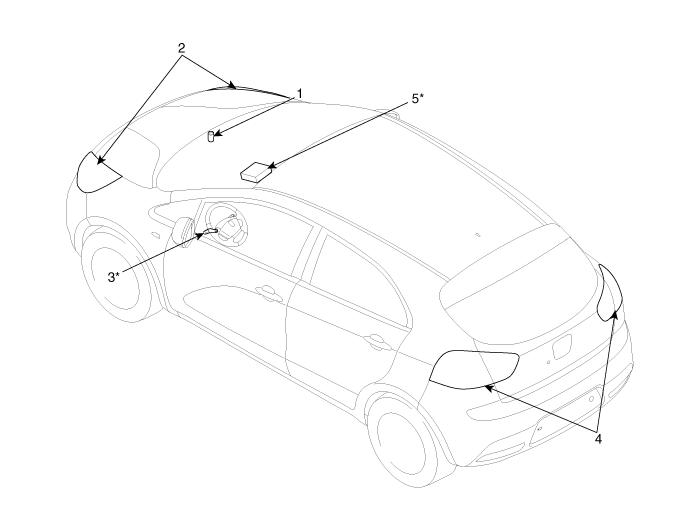

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. BCM (Body Control Module)

Specifications
Items Specifications Rated voltage DC 5V Load Max. 1.5mA (When head lamp lighting) Operating voltage range DC 4.6 ~ 5.1V ...

Circuit Diagram
...
