Kia Rio: Components - BCM (Body Control Module) - Body Electrical System - Kia Rio UB 2012-2019 Service ManualKia Rio: Components

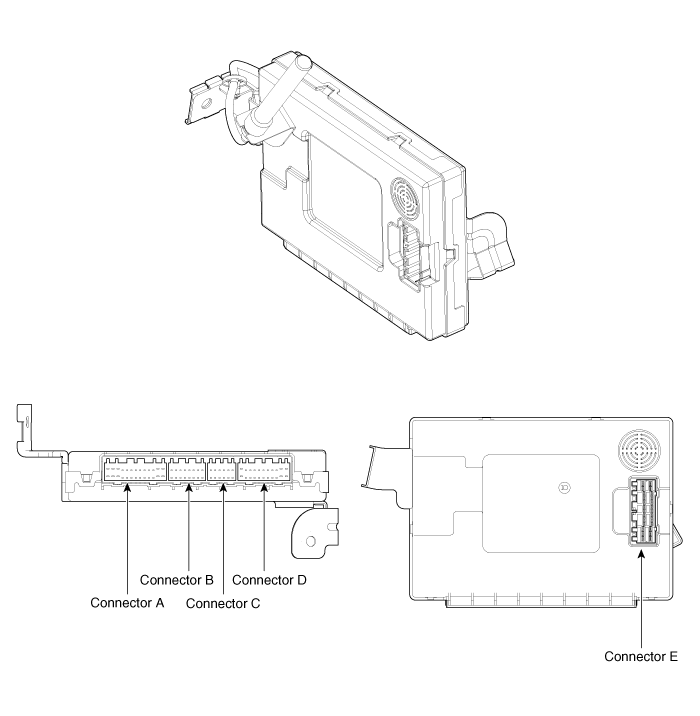

BCM connectors


Specifications
Item Requirement Remark Rated voltage DC 12V Shall activate normally in these range. Operating voltage range DC 9 ~ 16V ...

BCM connectors
Pin No. Connector A Connector B Connector C 1 Battery (+) K_LINE Turn signal switch (RH) 2 Ignition 2 Centr ...
