Kia Rio: Components - Engine And Transaxle Assembly - Engine Mechanical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Components

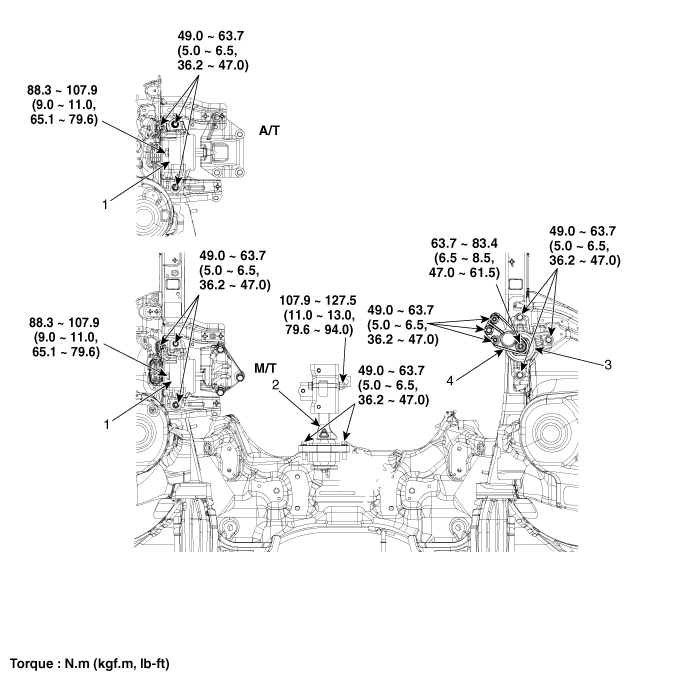

1. Transaxle mounting bracket
2. Roll rod bracket
3. Engine mounting bracket
4. Engine mounting support bracket

Engine And Transaxle Assembly
...

Removal
   Х Use fender covers to avoid damaging painted surfaces. Х ...
