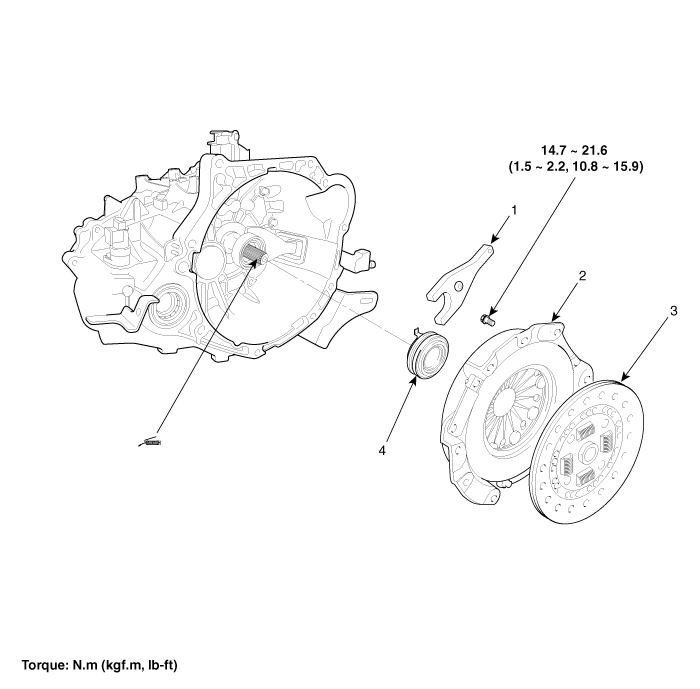

Kia Rio: Components - Clutch Cover And Disc - Clutch System - Kia Rio UB 2012-2020 Service ManualKia Rio: Components


1. Clutch release fork
2. Clutch cover assembly
3. Clutch disk assembly
4. Clutch release bearing

Clutch Cover And Disc
...

Removal
1. Remove the transaxle assembly. (Refer to "Manual transaxle system" in MT group) 2. Remove the clutch cover bolts. Be care ...
