Kia Rio: Hands free switch Schematic Diagrams - Body Electrical System - Kia Rio UB 2012-2019 Service ManualKia Rio: Hands free switch Schematic Diagrams

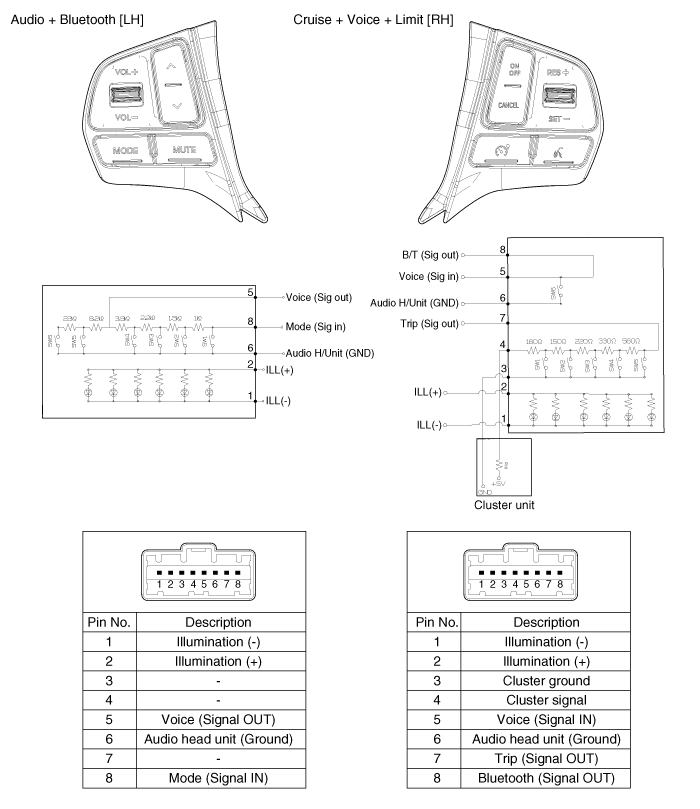

Circuit Diagram(1)

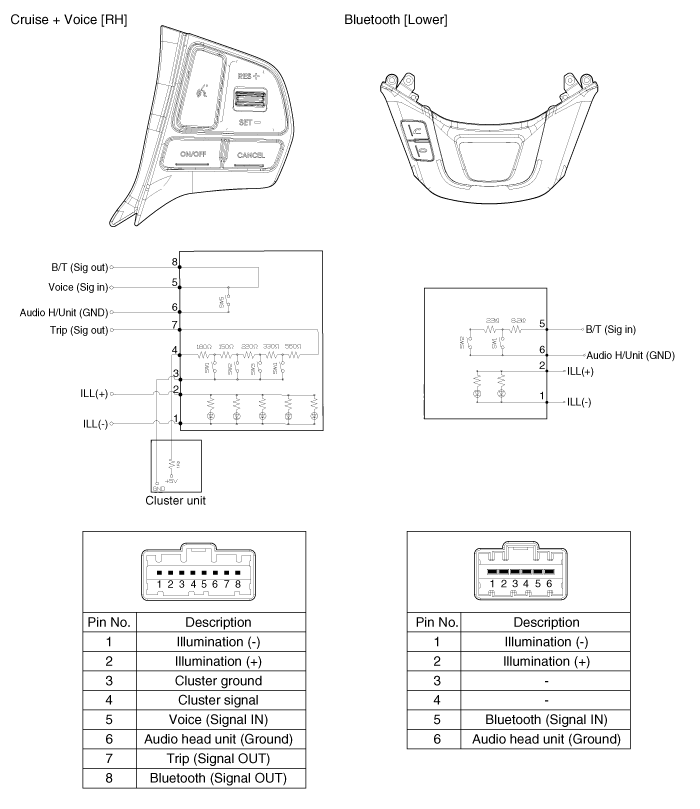

Circuit Diagram(2)


Circuit Diagram(2)

Hands free switch Inspection


Components
1. Hands free call switch 2. Mic 3. Front left speaker 4. Front right speaker 5. Audio head unit (hands free control) ※ There is no hands free jack. Thi ...

Hands free switch Inspection
1. Check the hands free remote control switch for resistance between No.4 and No.5 terminals in each switch position. Audio + Bluetooth [LH] ...
