Kia Rio: Components - Restraint - Kia Rio UB 2012-2020 Service ManualKia Rio: Components

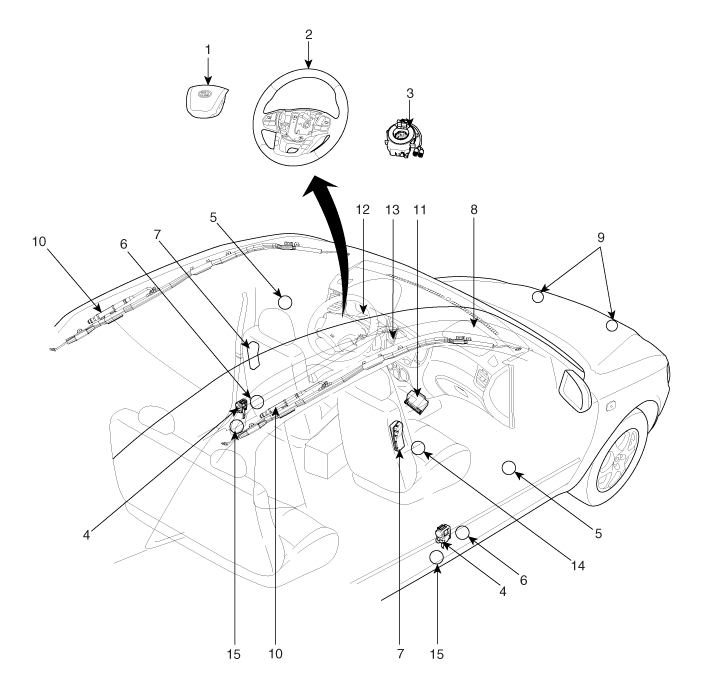

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Pressure Side Impact Sensor (P-SIS)
6. Side Impact Sensor (SIS)
7. Side Airbag (SAB)
8. Passenger Airbag (PAB)
9. Front Impact Sensor (FIS)
10. Curtain Airbag (CAB)
11. Supplemental Restraint System Control Module(SRSCM)
12. Airbag Warning Lamp
13. Telltale Lamp
14. Weight Classification System (WCS) Module
15. Anchor Pretensioner (APT)


Component Replacement After Deployment
   Before doing any SRS repairs, use the GDS Pro to check for DTCs. Refer to the Diagnostic Trouble Code list for repairing ...

Components Location
Supplemental Restraint System Control Module (SRSCM) Driver Airbag (DAB) / Passenger Airbag (PAB) Side Airbag (SAB) Curtain Airbag (CA ...
