Kia Rio: Components Location - Restraint - Kia Rio UB 2012-2019 Service ManualKia Rio: Components Location

Supplemental Restraint System Control Module (SRSCM)

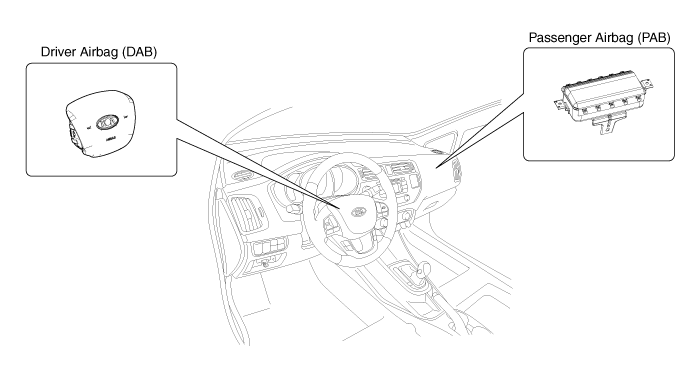

Driver Airbag (DAB) / Passenger Airbag (PAB)


Side Airbag (SAB)

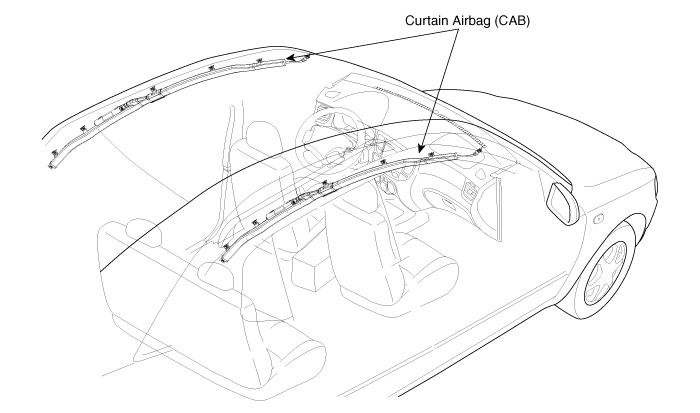

Curtain Airbag (CAB)

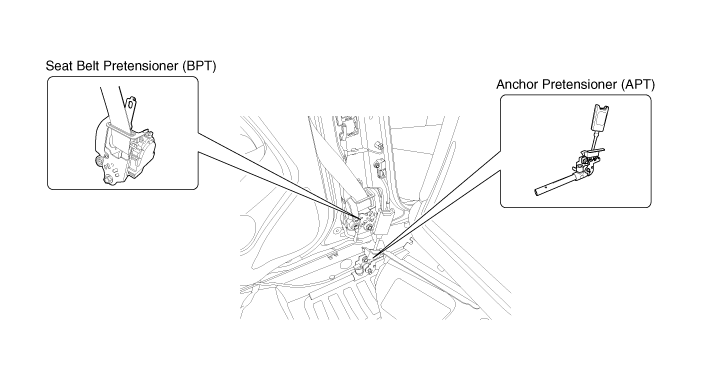

Seat Belt Pretensioner (BPT) / Anchor Pretensioner(APT)

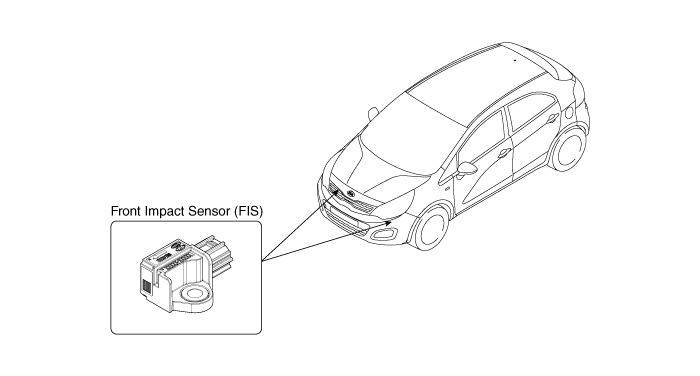

Front Impact Sensor (FIS)

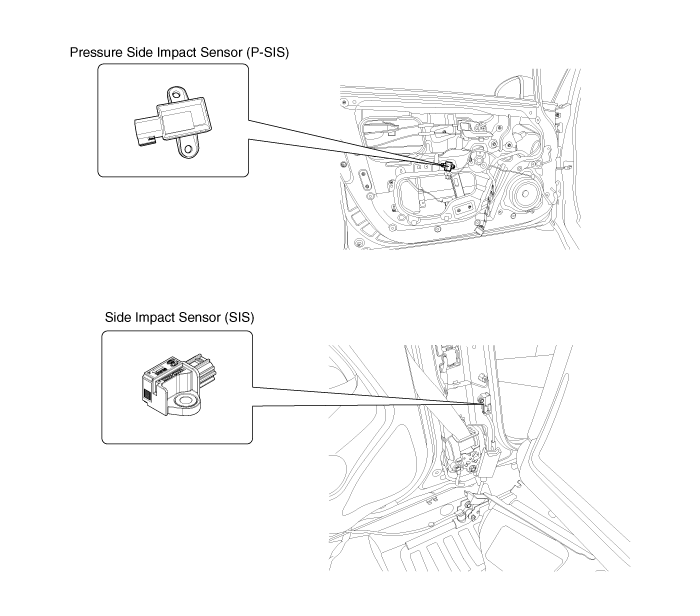

Side Impact Sensor (SIS)

SRSCM


Components
1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Seat Belt Pretensioner (BPT) 5. Pressure Side Impact Sensor (P-SIS) 6. Side Impact Sensor (SIS) 7. Side Airbag ...

SRSCM
...
