Kia Rio: Components - Brake Pedal - Brake System - Kia Rio UB 2012-2019 Service ManualKia Rio: Components

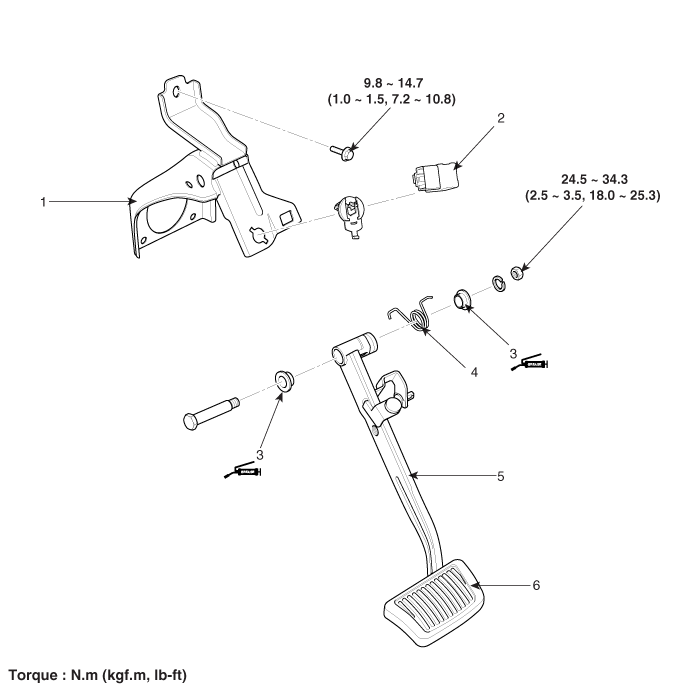

1. Brake pedal member assembly
2. Stop lamp switch
3. Pedal bushing
4. Return spring
5. Brake pedal
6. Brake pedal pad

Brake Pedal
...

Removal
1. Turn ignition switch OFF. 2. Remove the crash pad lower panel. (Refer to the Body group - "Crash pad") ...
