Kia Rio: Components - Rear Drum Brake - Brake System - Kia Rio UB 2012-2020 Service ManualKia Rio: Components

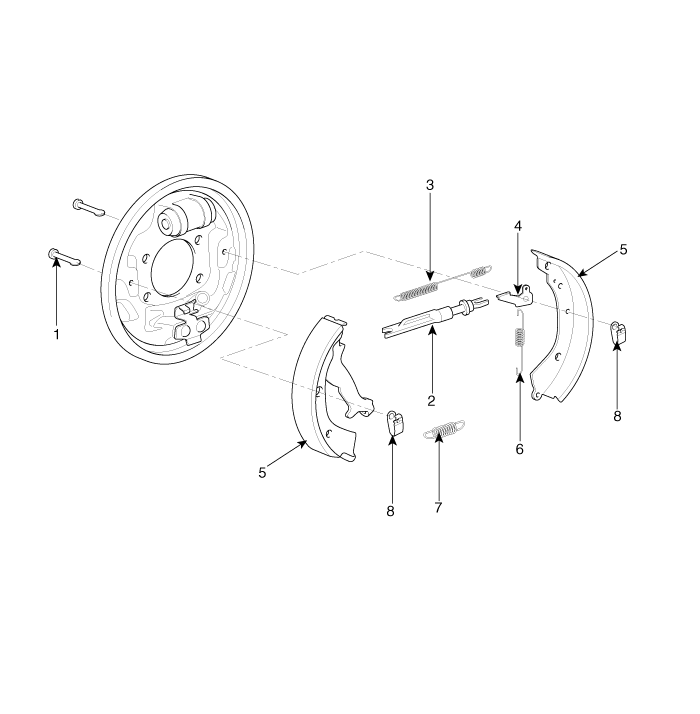

1. Shoe hold down pin
2. Shoe adjuster
3. Upper return spring
4. Adjusting lever
5. Shoe
6. Adjusting spring
7. Lower return spring
8. Shoe hold spring

Rear Drum Brake
...

Removal
   • Frequent inhalation of brake pad dust, regardless of material composition, could be ha ...
