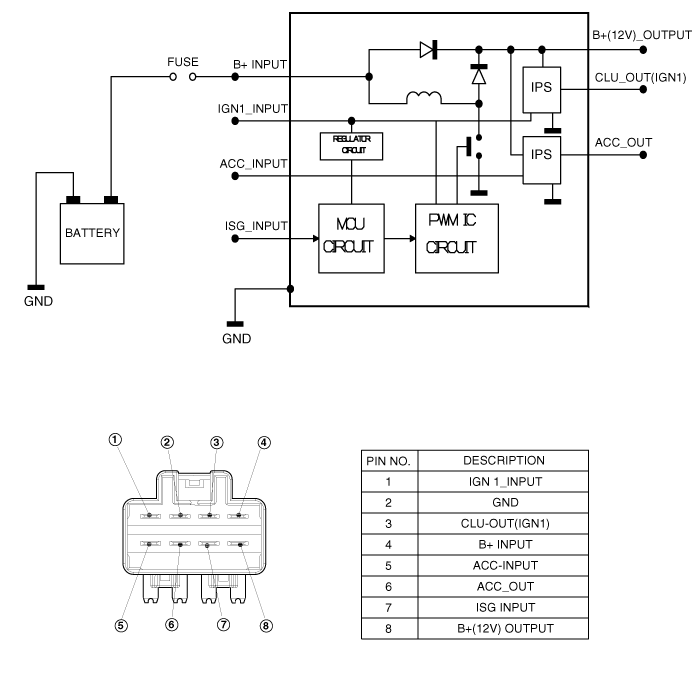

Kia Rio: DC/DC Converter: Circuit Diagram - ISG (Idle Stop & Go) System - Engine Control / Fuel System - Kia Rio UB 2012-2019 Service ManualKia Rio: DC/DC Converter: Circuit Diagram




In the ISG mode, if the power of an audio system turnsOFF by drawdown while Auto Starting or Idle Startingfunction operates, replace the DC/DC converter.
