Kia Rio: Description - Immobilizer System - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Description

The immobilizer system will disable the vehicle unless the proper ignition key is used, in addition to the currently available anti-theft systems such as car alarms, the immobilizer system aims to drastically reduce the rate of auto theft.
1.

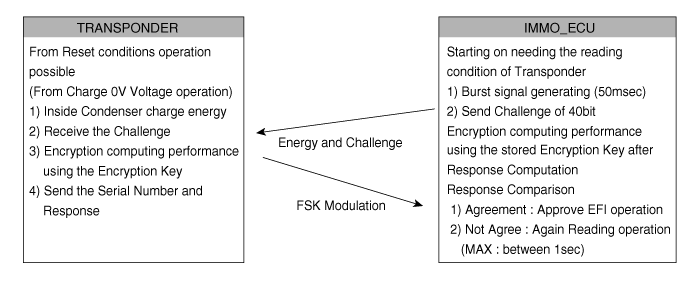

Transponder (TP) – IMMO ECU Communication


TP Read Protocol
(1)
IMMO_ECU after IGN on(or CPU Reset cancellation) is sent Challenge to TP and confirmed Serial Number and Signature.
(2)
When response of input transponder is not correct, input is retry.
(3)
When response of input transponder is correct, The data that calculate Encryption operation in the EEPROM program compared with received data from TP.
When Codes is same, input is finished.
If the codes are not same, input are continued until when codes are same.
(4)
If IMMO_ECU EEPROM code is not programming, when correct transponder is inputted (CRC Check OK), input is finished.
(5)
After IGN1 on(CPU Reset cancellation), IMMO_ECU is reading the maximum 5times Transponder Code
(6)
In the IGN1 ON&EMS_state=Lock state, when received ANKNOWLEDGE, TP is re-authenticated


2.

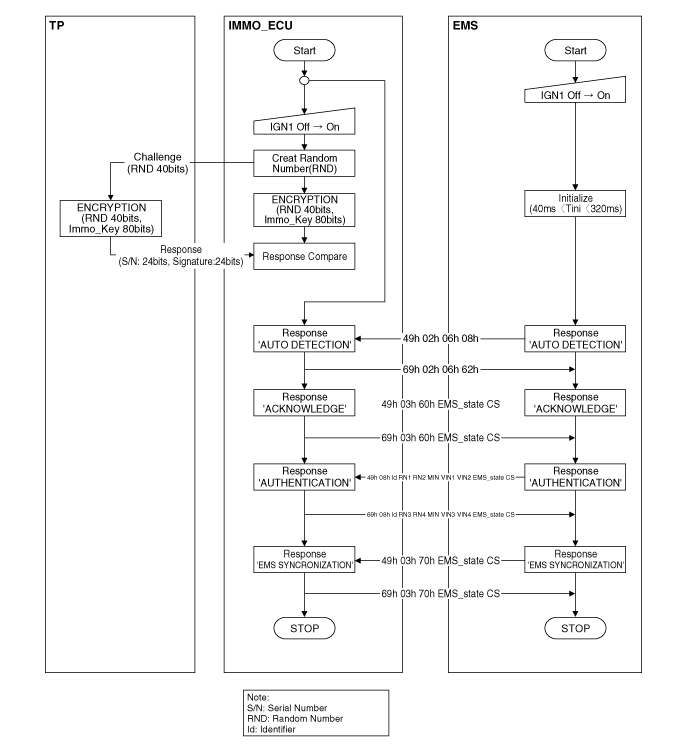

TP / IMMO ECU / EMS Authentication Flowchart


Components
...

Components Operations
ECM (Engine Control Module) 1. The ECM(PCM) (A) carries out a check of the ignition key using a special encryption algorithm, which is programmed into the transponder ...
